作品简述
钻石被广泛认为是宝石之王,它来自希腊的“坚硬”钻石,暗示着坚硬物质的不可侵犯性。
如今,拥有11年研发,生产LED屏幕的经验的BAKO Optolectronics的第六代租赁LED显示屏被命名 为“ 钻石系列” 。通过改变低价劣质的条件,将提高中国LED显示屏的声誉。钻石引领优质品质,成为租赁LED显示屏的新趋势
BAKO将新设计的压铸铝命名为“ Diamond”,原因如下:
1.橱柜后侧线条的设计灵感来自美丽,盛开的“钻石”。自设计草案发布以来,它得到了世界知名的专业租赁LED显示公司的积极反馈。
2.正如钻石被公认为最坚硬的材料一样,BAKO “ 钻石系列” 租赁柜也有类似的东西
3.具有特殊结构和压铸铝制工艺品的强度和硬度。保证拼接时不会变形的现象

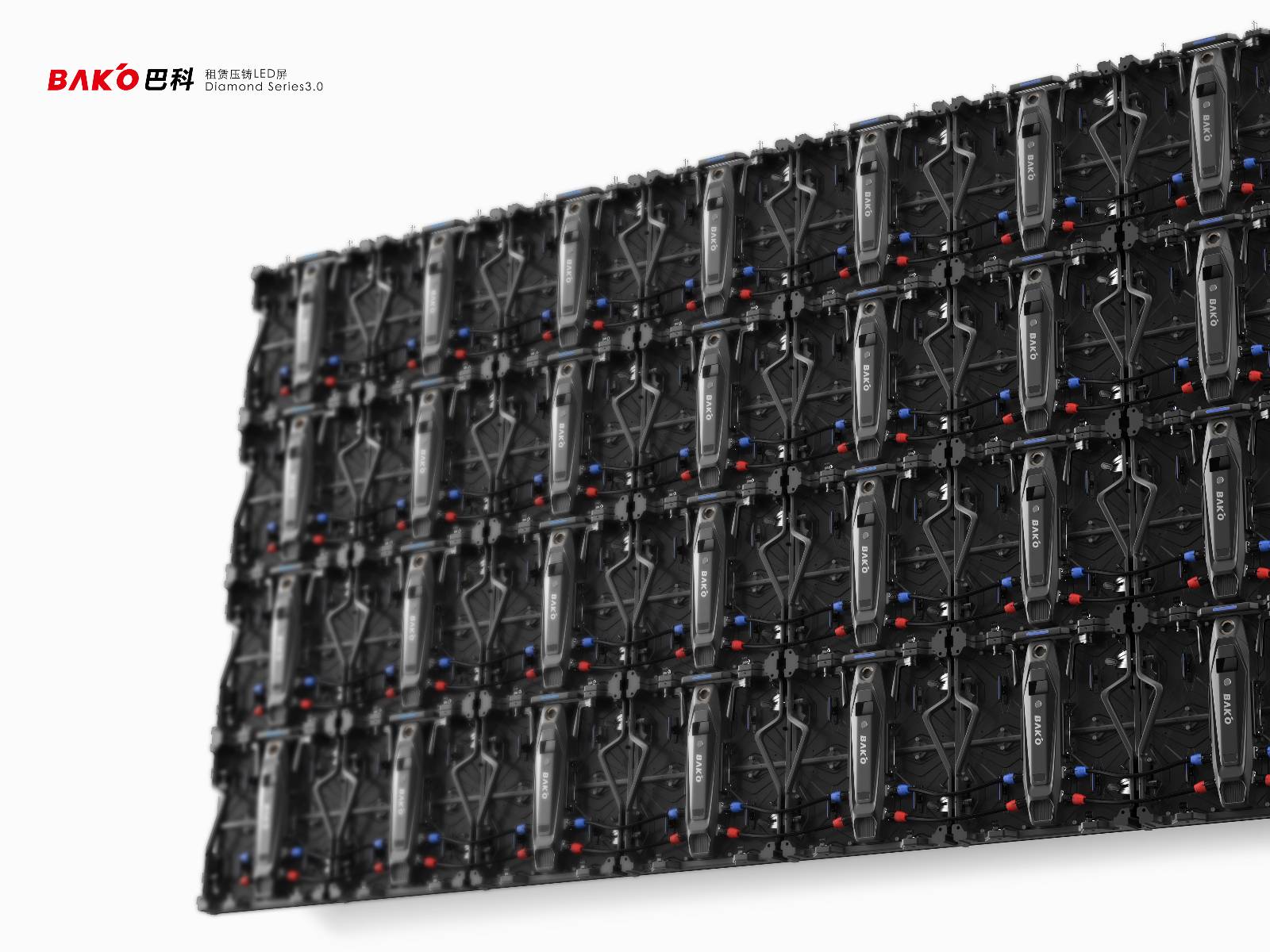

LED屏幕。如今,在用于租赁产品的轻量化趋势下,BAKO“钻石”系列提供了理想的解决方案,即使数千平方米也不会变形。
用户价值

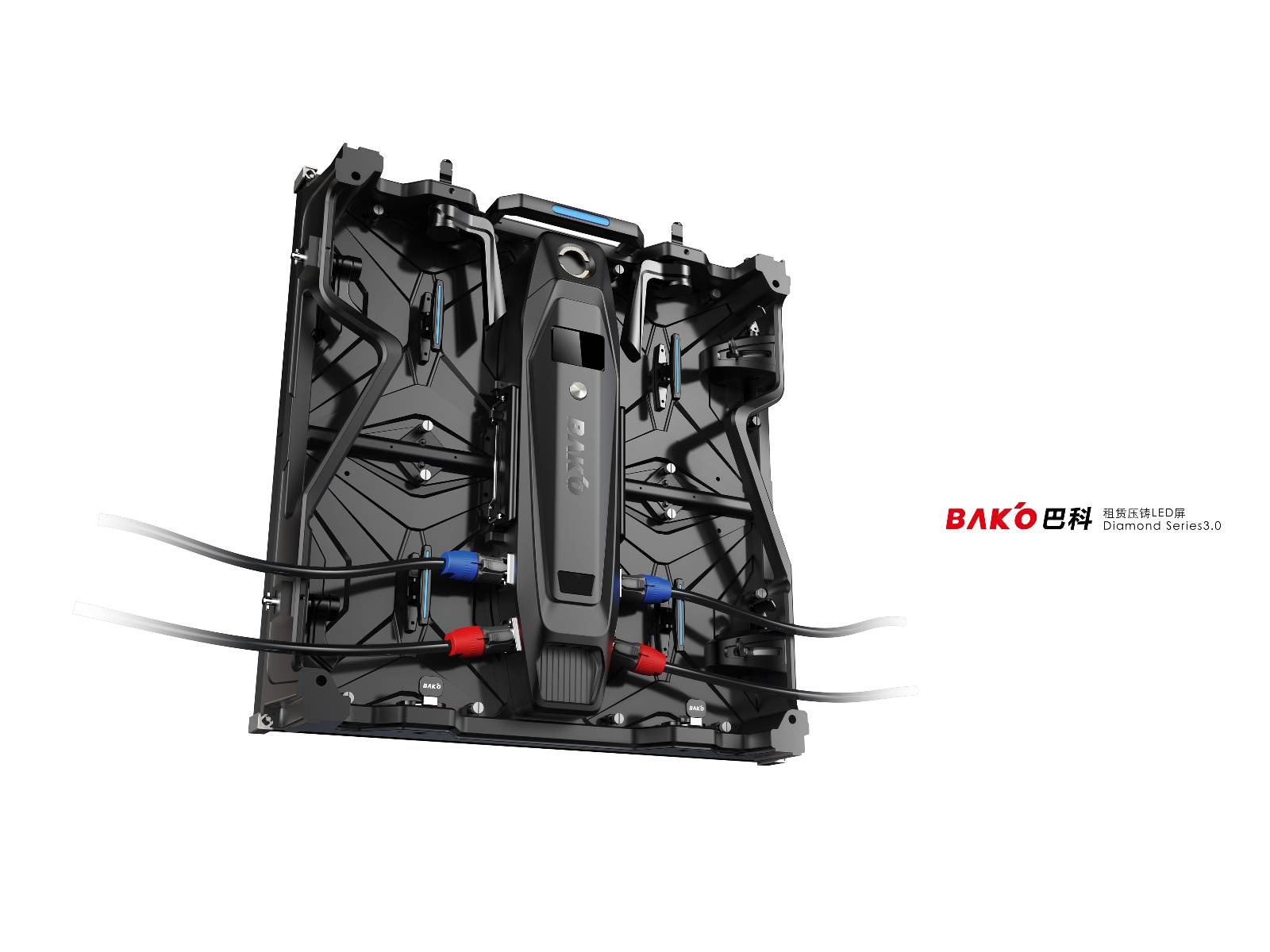

1、采用常规的500x500mm和500x1000mm尺寸设计,延续钻石系列设计风格,优化结构设计,构成简洁美观、线条流畅、图案对称的造型,同时底壳强度更高,不易变形,保证了屏体表面的平整度。
2、钻石3.0系列产品兼容前后维护方式,支持磁吸前维护,客户可根据需要选择锁螺丝后维护或使用松固托螺丝固定模组。

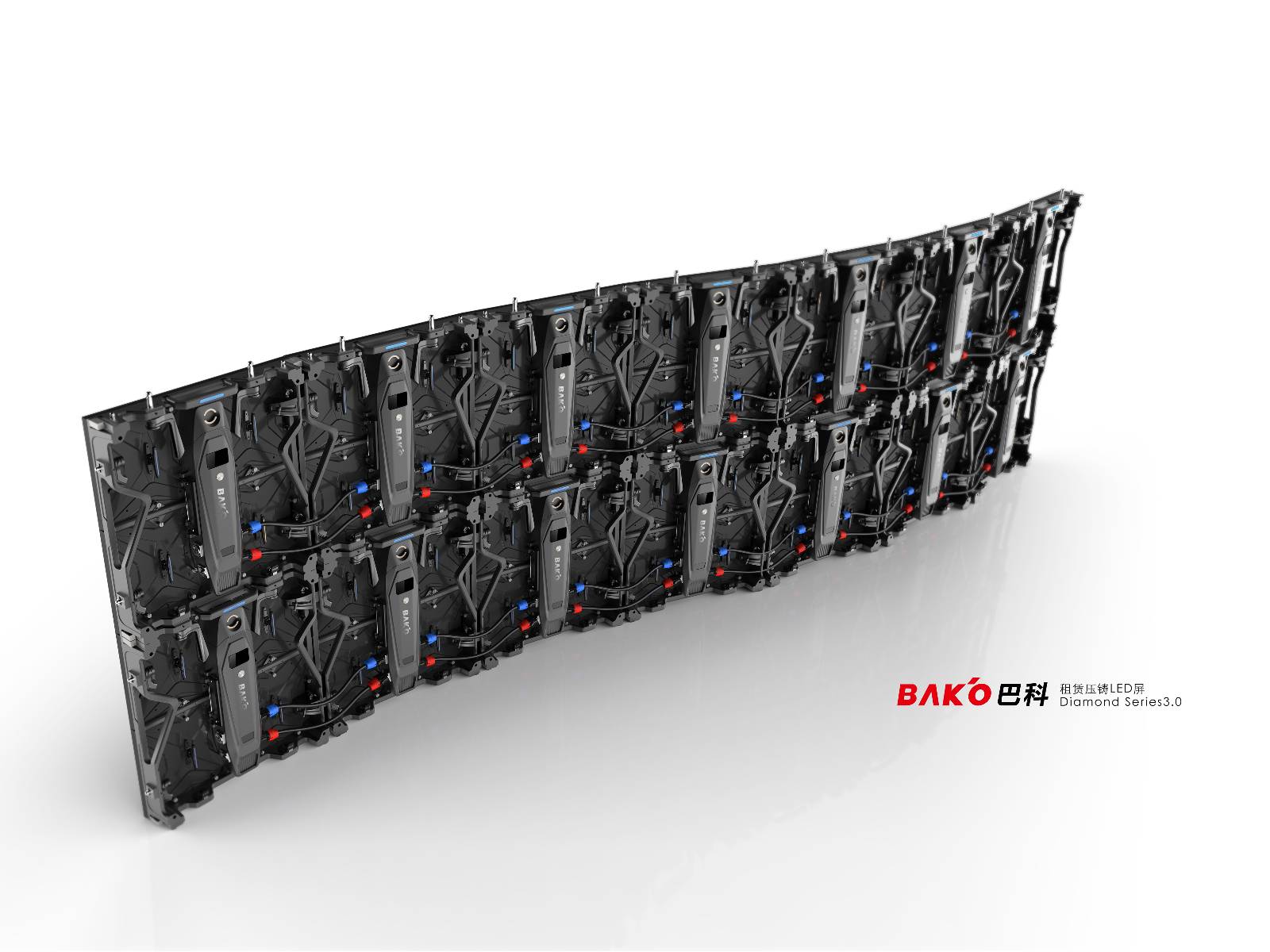

3、全新设计的单边可调±7.5度弧度锁,增加角度调整手柄的同时增加锁固手柄,精度更高,更容易操作。
4、箱体四角新增转轴防磕护角,箱体不进行拼装操作时,可将护角翻向灯面,防止箱体/屏体倾倒对箱体拐角灯面造成的损伤,箱体拼装时可向后翻转护角。
5、钻石3.0 延续了钻石1.0和钻石2.0系列的信号接口备份设计,用户可选择信号航插的使用与否或根据习惯选择信号输入/输出接口。
6、箱体顶部两侧增加10mm宽通槽,底部增加9.5mm宽凸台,箱体单独放置时,防止损伤/磕坏箱体底面边缘灯珠。箱体拼装时精准定位,辅助箱体快速拼装。
7、箱体系统盒部分采用快速安装拆卸设计,整个系统盒部分用两个把手锁固定在箱体上,安装或拆卸时只需对准对应定位孔/定位柱,后盖贴紧箱体后按下把手可锁紧后盖在箱体上,打开把手垂直向后移可快速拆下后盖部分。
8、模组采用双接口排针排母对插设计,组装模组时可不区分左右,将模组上的定位柱对准箱体上的定位孔平移,可快速安装模组;不使用的模组接口可配专属设计的盖板覆盖,防止模组元件外露。
9、该系列产品多应用于商场、企业、学校、舞台、银行、证券、交通、工商、电力、海关、 医院、公园、机场、车站、场馆等领域。
商业表现
该产品轻盈、多功能快速锁连接,无需工具可单人徒手安装,简捷。节省80%人力和物力,为客户创造更大的商业价值。
社会影响
在产品的应用过程中,整体降低了用户的运营和维护成本,加速了舞台的安装效率,节约了舞台的搭建时间,同时创造了一定的商业价值。
团队组织
石炜杰、詹志腾、汤嘉敏
产品方:深圳市巴科科技股份科技有限公司
设计方:深圳洛可可设计
流程方法
前期做了大量的市场调研、产品使用场景分析、可行性分析及成本预估综合导出产品定义及设计方向,形成出色的创意及产品。
Project Description
Diamond is widely regarded as the king of gems. It comes from Greek "hard" diamonds, implying the inviolability of hard materials.
Today, the sixth-generation rental LED display of BAKO Optolectronics with 11 years of R & D and production experience in LED screens is named "Diamond Series". By changing the low-quality and low-quality conditions, China's LED display reputation will be enhanced. Diamond leads high quality and becomes the new trend of rental LED display
BAKO named the newly designed die-cast aluminum "Diamond" for the following reasons:
1. The design of the back side of the cabinet is inspired by the beautiful, blooming "diamond". Since the design draft was released, it has received positive feedback from a world-renowned professional rental LED display company.
2. Just as diamonds are recognized as the hardest material, there is something similar in the BAKO "Diamond Series" rental cabinets
3. Special structure and strength and hardness of die-cast aluminum crafts. Guaranteed no distortion during splicing
LED screen. Today, in the light weight trend for leasing products, the BAKO "Diamond" series offers the ideal solution that will not deform even thousands of square meters.
User Value
1.Using the conventional 500x500mm and 500x1000mm size design, continuing the diamond series design style, optimizing the structural design, forming a simple and beautiful, smooth lines, symmetrical pattern, while the bottom shell has higher strength and is not easy to deform, ensuring the flatness of the screen surface degree.
2. Diamond 3.0 series products are compatible with front and rear maintenance methods, and support magnetic maintenance before maintenance. Customers can choose to maintain after locking the screws or fix the module with loose screws.
3. The newly designed unilateral adjustable ± 7.5 degree radian lock, which increases the angle adjustment handle and increases the locking handle at the same time, has higher accuracy and easier operation.
4. The four corners of the box are newly equipped with anti-shaft corners. When the box is not assembled, the corner can be turned to the lamp surface to prevent the box / screen from falling to the corner of the box. The box is assembled. You can flip the corners backwards.
5. Diamond 3.0 continues the signal interface backup design of Diamond 1.0 and Diamond 2.0 series. The user can choose the use of signal aviation plug-in or choose the signal input / output interface according to habits.
6. 10mm wide through grooves are added on both sides of the top of the box, and 9.5mm wide bosses are added on the bottom. When the box is placed alone, it can prevent damage to the lamp beads on the bottom edge of the box. Precise positioning when assembling the cabinet, assisting the rapid assembly of the cabinet.
7. The system box part of the box body is designed for quick installation and removal. The entire system box part is fixed to the box body with two handle locks. When installing or removing, you only need to align the corresponding positioning holes / columns. Press the handle to lock the back cover on the box. Open the handle and move it vertically backward to quickly remove the back cover.
8. The module adopts dual interface pin header and female mating design, which can distinguish between right and left when assembling the module. Align the positioning column on the module with the positioning hole on the box to translate and install the module quickly. The group interface can be covered with a specially designed cover to prevent the module components from being exposed.
9. This series of products are mostly used in shopping malls, enterprises, schools, stages, banks, securities, transportation, industry and commerce, electricity, customs, hospitals, parks, airports, stations, stadiums and other fields.
Business Performance
This product is lightweight, multifunctional and quick-lock connection. It can be installed by one person with bare hands without tools. Save 80% of manpower and material resources and create greater business value for customers.
Social Impact
During the products application, save the operation and service cost for the customer, improve the stage installation efficient, save the time, and create more business value.
Team Structure
Shi Weijie, Zhan Zhiteng, Tang Jiamin
Product side: Shenzhen Baco Technology Co., Ltd.
Designed by: Shenzhen Rococo Design
Flow
In the early stage, a large number of market research, product use scenario analysis, feasibility analysis and cost estimation were conducted to comprehensively derive the product definition and design direction, forming excellent ideas and products.
