作品简述

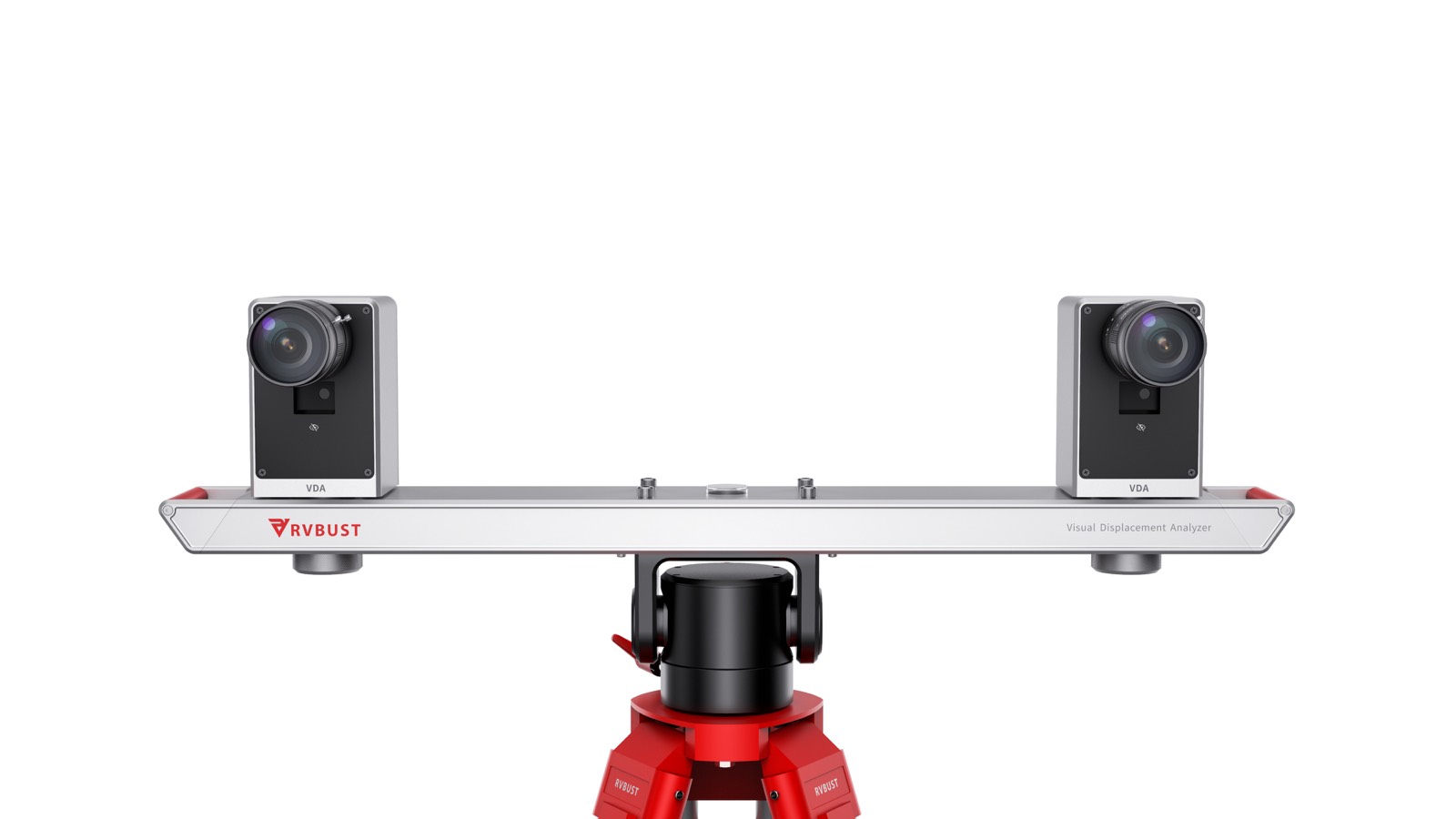

VDA是业界首个用于室外工程应用的实时,高精度位移检测系统。它能够测量和监视2D / 3D表面轮廓,位移,变形,应变,运动,振动,速度,加速度和其他物理量。通过各种硬件配置,VDA的工作距离范围为0.5 m至1000 m。它可以产生极高的位移检测精度,例如,在100 m的测量距离处达到0.01 mm(10 fps的实时工作速度)。 模块化的设计。使组装和校准在五分钟内完成,这是其他同类产品的五分之一。它允许在不移动系统的情况下进行多点和广域测量。坚固的机身设计有助于确保VDA在室外测量中的稳定性和可靠性。 VDA解除了户外工程实践中通常遇到的挑战性限制。它大大减少了劳动力投入和运营成本。 VDA可以在众多领域中发挥重要作用,包括轨道交通,建筑,水力,航空航天,新能源等。
用户价值
通过结合行业领先的计算机视觉技术和卓越的工业设计理念,VDA解除了户外工程实践中通常遇到的挑战性限制,精简了测量人员投入从而大幅度降低测算成本。
商业表现
产品自推出以来,已经与华建、中建等公司展开了深入的合作,将来会与更多公司形成紧密合作关系,让视觉与机器人技术应用于更多场景。
社会影响
作为一款高精度、非接触式测量产品,VDA在工业、交通、医疗、科研等领域存在巨大的应用潜力。例如在高铁领域,为了确保铁轨处于健康的工作状态,这就需要定期对高铁铁轨等区域的振动频率、幅度进行监控。VDA可以实现全天候的铁轨多点震动测量,并结合软件分析得出铁轨健康状况,为铁轨养护提供更加容易使用的自动化设备,节省大量人力。在材料应变测量领域,VDA可以直接精确计算材料表面每一个像素点的变化情况,输出变形热图,从而得到材料每一个点应变情况等详细的信息。
团队组织
产品方:深圳市如本科技有限公司
设计方:深圳洛可可设计 詹志腾、汤嘉敏、闫震、林翰、蔡高佳
流程方法
前期作了大量的产品使用场景分析、产品使用流程分析,可行性分析,形成出色的创意及产品。
Project Description
VDA is the industry's first real-time and high-accuracy displacement detection system for outdoor engineering applications. It is capable of measuring and monitoring 2D/3D surface profile, displacement, deformation, strain, motion, vibration, velocity, acceleration, and other physical quantities. With a variety of hardware configurations, the VDA working distances ranging from 0.5 m to 1000 m. Its can yield an ultrahigh accuracy of displacement detection, for instance, up to 0.01 mm at a measurement distance of 100 m, a real-time working speed at 10 fps. the VDA is designed as a modular structure. enables the assembly, and calibration to be completed in five minutes, which is one-fifth other similar products. It allow multi-point and broad-region measurements without moving the system. Solid body design helps ensure the stability and reliability of the VDA for outdoor measurements. the VDA lifts the challenging restrictions normally encountered in outdoor engineering practices. It considerably reduced labor input and operation cost. VDA can play an important role in numerous fields, including rail transit, construction, hydraulic, aerospace and aeronautical, new energy, etc.
User Value
By combining the industry-leading computer vision technology and the excellent industrial design concept, VDA has relieved the challenging restrictions usually encountered in outdoor engineering practice, simplified the input of measurement personnel and greatly reduced the measurement cost.
Business Performance
Since the product was launched, it has carried out in-depth cooperation with Huajian, CSCEC and other companies, and will form close cooperation with more companies in the future, so that vision and robot technology can be applied to more scenes.
Social Impact
As a high-precision, non-contact measurement product, VDA has great potential in industry, transportation, medical treatment, scientific research and other fields. For example, in the field of high-speed rail, in order to ensure that the rail is in a healthy working state, it is necessary to regularly monitor the vibration frequency and amplitude of high-speed rail and other areas. VDA can realize all-weather multi-point vibration measurement of rail, and combine with software analysis to get rail health status, provide more easy-to-use automatic equipment for rail maintenance, and save a lot of manpower. In the field of material strain measurement, VDA can directly and accurately calculate the change of each pixel on the material surface, output the deformation heat map, and get the detailed information of the strain of each point of the material.
Team Structure
Product Party: Shenzhen Ruben Technology Co., Ltd
Designer: Zhan Zhiteng, Tang Jiamin, Yan Zhen, Lin Han, Cai Gaojia, Rococo design, Shenzhen
Flow
In the early stage, a large number of market research, product use scenario analysis, feasibility analysis and cost estimation were conducted to comprehensively derive the product definition and design direction, forming excellent ideas and products.
