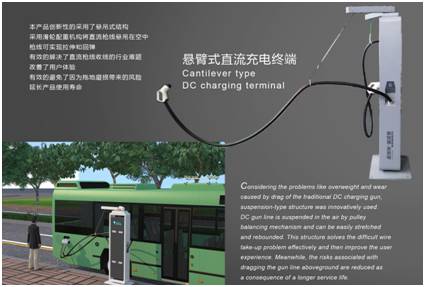

悬臂式直流充电终端
cantilever DC charging terminal
产品 机械装备 6434 0 2019-01-14
Like(0) Favor(0)
Details
Chinese / English
作品简述

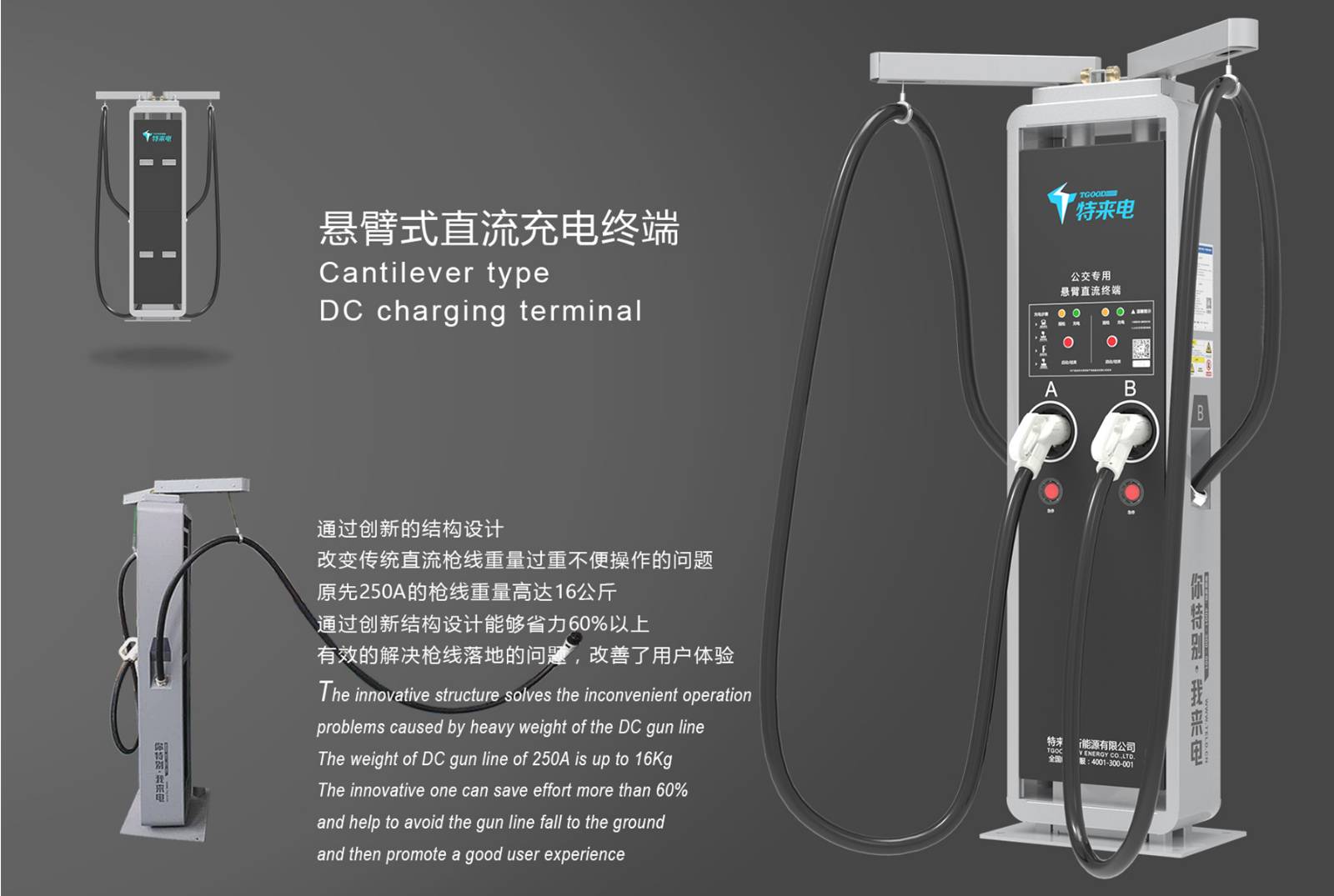

悬臂式直流充电终端外观设计采用了中国传统的禅意理念,在“方”、“圆”和“黑”、“白”之间追求极简的禅意韵律。 产品创新性的采用悬吊式机构,采用滑轮配重将直流枪线悬吊在空中,使枪线可实现拉伸和回弹,有效的解决了直流枪线收线的行业难题(原先250A的直流枪线重量高达16公斤,通过创新结构设计能够省力60%以上),改善了用户体验,同时可以有效的避免因枪线拖地磨损带来的风险,延长产品使用寿命;一机双枪配置,自带的悬臂结构可以实现单枪线180°的自由旋转,节约了设备占地空间,降低充电场站投建成本,有效拓展了枪线的伸展半径。 应用特来电独创群管群控的设计理念,将带电与不带电的箱变、总控箱与充电终端分离(将电气件集中于总控箱,实现了40%电气件的共用,同时可以实现电流的合理配置,场站建设成本节约30%以上),采用无电终端、无电插头,安全性能高,经济性好。可广泛适用于公交大巴场站、普通乘用车等场站,满足新能源公交大巴车、普通乘用车及特种车辆的充电需求。
用户价值
暂无
商业表现
暂无
社会影响
悬臂式直流充电终端的整体结构采用无螺栓卡接设计,防水等级达到IP54,极易拆装,方便后期维护、保养;采用钣金加工制作,易于加工,且可回收循环再利用,降低能源消耗,减少对环境的伤害;专用金属塑粉双色喷涂,磨砂质感金属灰和哑光银更能体现科技感,科技、醒目的色彩应用,树立了电动车充电产品的新视觉形象,同时,也很好的兼容于使用环境。
团队组织
青岛特来电新能源有限公司是青岛特锐德电气股份有限公司(股票代码300001)的全资子公司,主要从事新能源汽车充电网的建设、运营及互联网增值服务。特来电颠覆了传统充电桩的模式,世界首创了电动汽车群智能充电系统,获得336项技术专利,以“无桩充电、无电插头、群管群控、模块结构、主动防护、柔性充电”的特点引领世界新能源汽车充电的发展,系统的鉴定结论为:“产品世界首创、技术水平国际领先。 特来电采用互联网思维,依靠国际领先的汽车群智能充电技术和系统,创新电动汽车充电商业模式,建设全国最大的汽车充电网,通过大系统卖电、大平台卖车、大合作租车、大数据修车、大支付金融、大客户电商,打造让客户满意、政府放心的中国最大汽车充电网生态公司,引领充电网、车联网、互联网“三网融合”的新能源互联网。 特来电现拥有347人的研发团队,共获得336项专利,产品多次荣获IF、红星奖、省长杯、DIA、成功奖、市长杯等国内外设计大奖。截止目前共成立88家子公司,已建设19.2万个充电终端,覆盖城市294个,累计充电量突破12亿度,对应碳减排132万吨,节油5.77亿升。
流程方法
暂无
项目投入
暂无
达成情况
暂无
Project Description
The design of the cantilever DC charging terminal adopts the traditional Chinese concept of Zen, pursuing a minimalist Zen rhythm between “square”, “circle” and “black” and “white”. The innovative use of the suspension mechanism, the use of pulley weights to suspend the DC gun line in the air, so that the gun line can achieve stretching and rebound, effectively solve the industry problem of DC gun line take-up (original 250A The weight of the DC gun wire is up to 16 kg, which can save more than 60% by innovative structural design. It improves the user experience, and can effectively avoid the risk caused by the wear of the gun line and extend the service life of the product. The self-cantilever structure can realize 180° free rotation of the single gun line, which saves space for equipment, reduces the cost of construction of the charging station, and effectively expands the extension radius of the gun line. Applying the unique call generation group control group design concept, the charged and unpowered box change, the main control box and the charging terminal are separated (the electrical components are concentrated in the total control box, achieving 40% of the electrical parts sharing, and at the same time Reasonable configuration of current, saving station construction cost by more than 30%), using non-electric terminal, no power plug, high safety performance and good economy. It can be widely used in bus bus stations, ordinary passenger cars and other stations to meet the charging needs of new energy bus buses, ordinary passenger cars and special vehicles.
User Value
not available
Business Performance
not available
Social Impact
The overall structure of the cantilever DC charging terminal adopts boltless snap-on design, the waterproof level reaches IP54, it is easy to disassemble and assemble, which is convenient for later maintenance and maintenance. It is made of sheet metal processing, easy to process, and can be recycled and reused to reduce energy consumption. , to reduce the damage to the environment; special metal plastic powder two-color spray, matte texture metal gray and matte silver can reflect the sense of science and technology, technology, eye-catching color application, set a new visual image of electric car charging products, at the same time, very Good compatible with the use environment.
Team Structure
Qingdao Special Call New Energy Co., Ltd. is a wholly-owned subsidiary of Qingdao Teruide Electric Co., Ltd. (stock code 300001), mainly engaged in the construction, operation and Internet value-added services of new energy vehicle charging network. The special call has subverted the traditional charging pile model. The world's first intelligent charging system for electric vehicle clusters has obtained 336 technical patents, with “no pile charging, no electric plug, group group control, module structure, active protection, flexible charging”. The characteristics lead the development of new world energy vehicle charging. The system's appraisal conclusion is: "The world's product is the first and the technology level is internationally leading. Special calls use Internet thinking, relying on the international leading automotive group intelligent charging technology and system, innovating the electric vehicle charging business model, building the country's largest car charging network, selling electricity through large systems, selling cars on large platforms, car rental, big data repair Cars, large payment finance, and large customer e-commerce, to create a new car charging network eco-company that satisfies customers and the government is assured, and leads the new energy Internet of charging network, car networking and Internet "three networks integration". The special call has a research and development team of 347 people, and has won 336 patents. The products have won many awards such as IF, Red Star Award, Governor's Cup, DIA, Success Award, Mayor's Cup and so on. Up to now, a total of 88 subsidiaries have been established, and 192,000 charging terminals have been built, covering 294 cities. The accumulated charging capacity has exceeded 1.2 billion degrees, corresponding to 1.32 million tons of carbon emission reduction and 577 million liters of fuel
Flow
not available
Project Investment
not available
Project Achievements
not available
