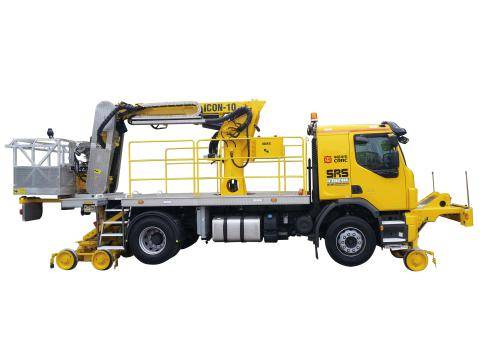

一、Solve problem and study object： The dual-use high-altitude working vehicle of ICON series that developed by the CRRC SIFANG CO., LTD. is the basic models of road-rail for engineering series. It mainly used for the construction, overhaul and maintenance operations of the track catenary, as well as lights installation on the railway or highway, tunnel cleaning and other high-altitude operations. The train design is fully European design standard,the domestic zero breakthrough has been achieved in railway walking,highway and railway transformation,front-and-back bridge system,electrical and hydraulic control. The dual-use high-altitude working vehicle of ICON series have solved the conversion of highway and rail models，vertical to track，steel wheel drive and other technical problems.To save resources,reduce energy consumption,improve productivity and product versatility. 二、Innovation leadership： 1、The dual-use high-altitude working vehicle of ICON series is the first model in China, which has passed the European CE certification. 2、A total of 33 patent applications, including 4 patents (authorized); 29 new and practical patents (authorized 24, accepted 5). We also set 3 items of enterprise standards. 3、The vehicle is divided into five systems：Road driving system，Railway driving system，Aerial work system，Electric devices control system and Hydraulic control system.The main technical innovation content is as follows. （1）Vertical to track：Compare with the previous parallel up and down orbit,there is little space and short time needed to drive on and off the track. （2）Hydraulic drive railway trail devices：The track mode is changed from rubber wheel drive to steel wheel drive,the split drive is realized. （3）Using the CAN-BUS bus microcomputer control. （4）Hydraulic system technical innovation：Closed loop drives the bogie to achieve shift,forward and backward. （5）Innovative characteristics of brake system：fast heat,light weight，simple construction,easy to adjust,and high load has good high temperature resistance. （6）Overload protection function of Work bucket：Acoustic alarm when reaching the rated weight of 90%,alarm and stop when reaching the rated weight of 105%. （7）Emergency drop function：when the power source is lost,work bucket emergency descent is achieved by operating the work bucket emergency valve and the turntable emergency valve. （8）Height work height restriction function：When the work bucket reaches maximum height,the engine is stopped by the height sensor on the folded arm.

（1）Driver＇s control desk is divided into driving control area and multiplication function area,the contact surface is curved.Use the western right-hand driving layout and meet the ride requirement of 2 people. Field of vision is calculated to meet standard requirements.The layout and modeling are in line with the ergonomic principle. （2）The railings are shaped in a tube shape.High-altitude work can be equipped with helmet,seat belt and installation point. （3）The vehicle is equipped with safety warning sign and vehicle information nameplate to guides users to operate safety. （4）The line is firm and supple.Driver＇s room,the main color and guide mechanism uses large area warning color: signal yellow,the base is inked black,color contrast strong,and alert drivers and pedestrians to avoid risk.Choosing color pursues harmony,concise and generous.

Orders from UK： The company has finished the production of seven ICON-8 road-rail vehicles and derivative products, with total sales income of about 30 million . The sales income added by 30 million with profit of 5 million since the SRS company placed another 6 intent orders. After the production of 3 pieces of ICON-10 road-rail vehicles, the SRS company placed another 4 intent orders, accounting for 25 million of total sales income. The order amount of domestic high-altitude working vehicle reached 8 million in 2015.

1.Improve company's reputation Since the dual-use high-altitude working vehicle of ICON series being applied in the United Kingdom, it marks that the CRRC SIFANG CO., LTD. Of century-old development history entered the European market. It is the fruitful achievement that we made, an important milestone of innovation breakthrough, and more importantly a new starting point for the rapid development of our company. 2.Improve the design level Through the successful implementation of this project, we have mastered the design method of dual-use high-altitude working vehicle drove by steel wheel. On this basis, we designed and developed the dual-use hoisting operating vehicle and catenary wire-barrow, high-altitude working vehicle of heavy-duty truck chassis, and other products.

CRRC SIFANG CO., LTD is a wholly owned subsidiary of CRRC CORPORATION LIMITED，The company registered for No.9 Hongping Road,Chengyang District,Qingdao City,Shandong Province,and registered capital 343.1 million ,total corporate assets 6.188 billion.The company is now mainly engaged in High-end railway carriage,manufacture and repair of High-Speed EMU Unit(Joint venture),all kinds of railway locomotive,city rail subway and other rail transport equipment repair,installation and reform, road-rail dual vehicle and various kinds of railway special vehicles,railway locomotive carriage and energy equipment accessories manufacturing,motor vehicle technical services,logistics,import and export and new materials business. Innovation platform construction situation and achieve industrial design performance：The company applied to city industrial design center in 2015 and provincial industrial design center in 2016,and complete 11 industrial design projects,and apply 8 patents for design. Future Development Goals:The company insists on combining design innovation and technological innovation.Improve industrial design independent innovation ability.Enhance industrial design industrialization development level.Support industrial design innovation industrialization. Continuous technological innovation as the power source of enterprise development, adhere to the development trend of industry technology.Lead research directions with effective market demand,promoting sustainable development of enterprises. Further enhance the company＇s actual industrial design capability,and accelerate the development of industrial design.
