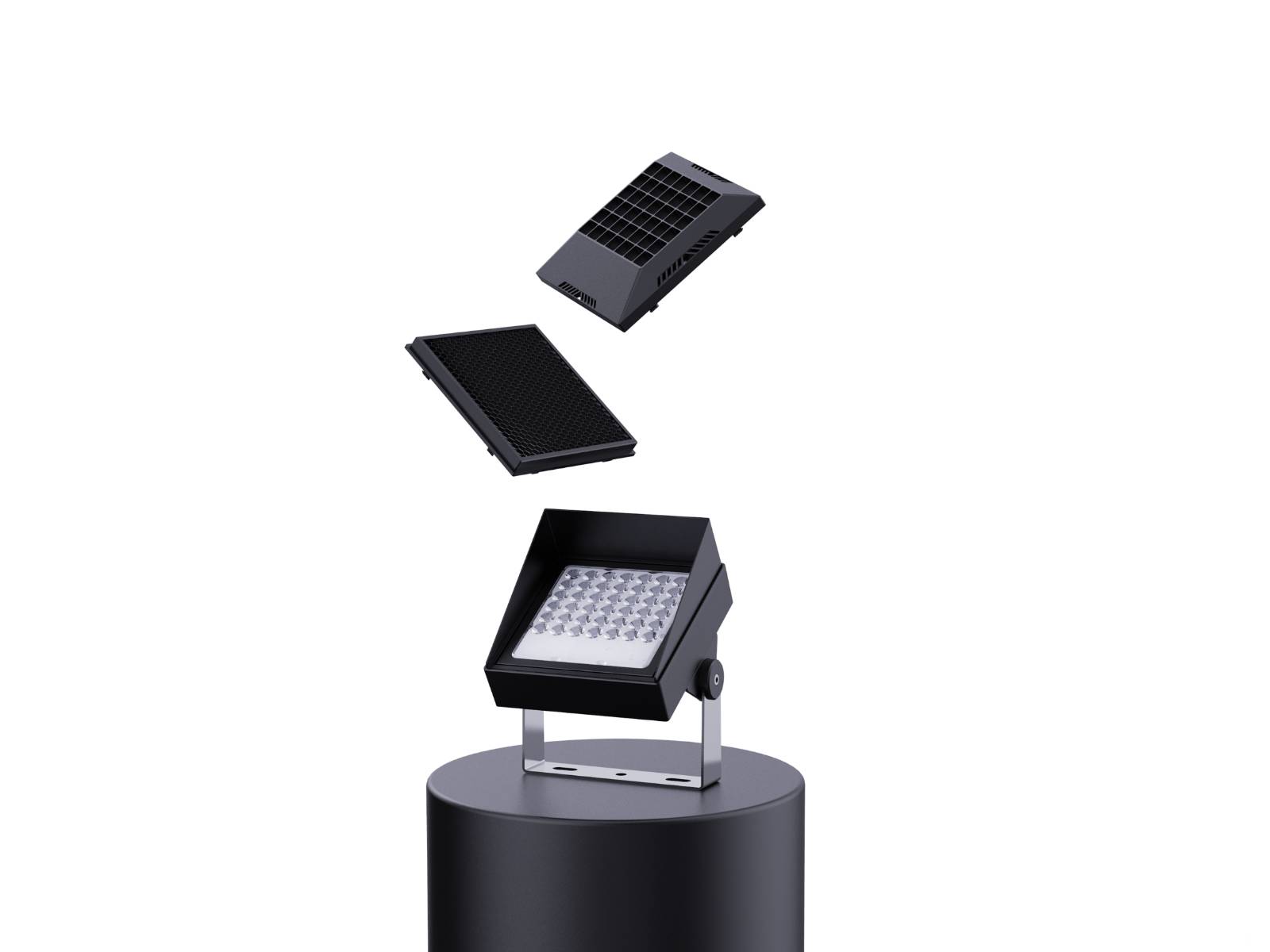

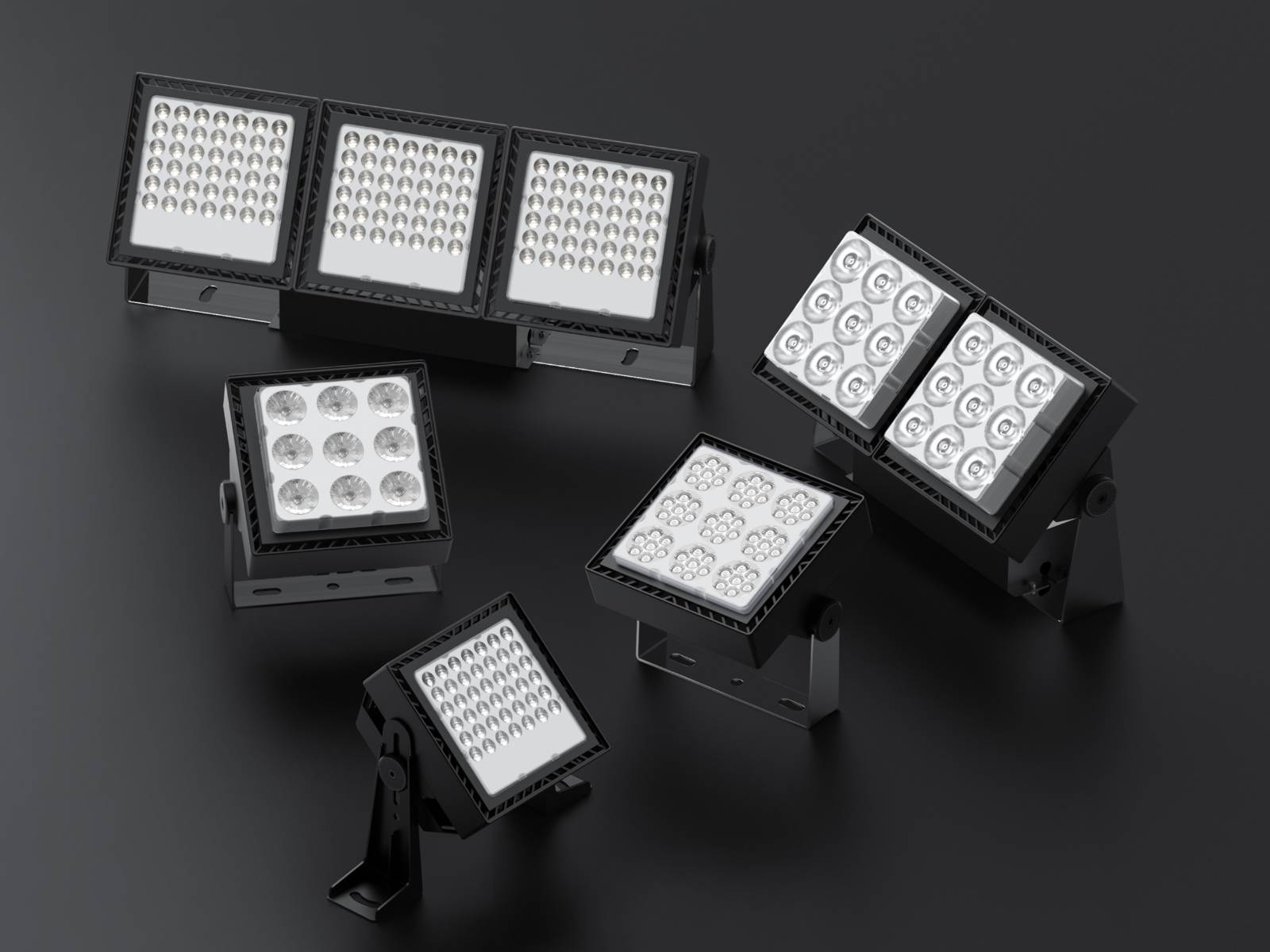

As an industry-leading outdoor floodlight, MatriX 6.0 supports free combinations (the power of combined system can reach ten thousand watts), and is rich in color (single white, RGB, RGB+W, RGBW four in one, RGPLLCB seven in one), with long&soft light, as well as a wide range of applications. It adopts a streamlined high-efficiency heat dissipation design- heat dissipation holes of the light body, which has an excellent heat dissipation performance, increases the heat dissipation area, and can effectively protect the illuminated object. In addition, it attaches great importance to the comfort of lighting at night, and each flood light is equipped with replaceable anti-glare accessories, thereby avoiding discomfort to the human body and providing a better experience for users.

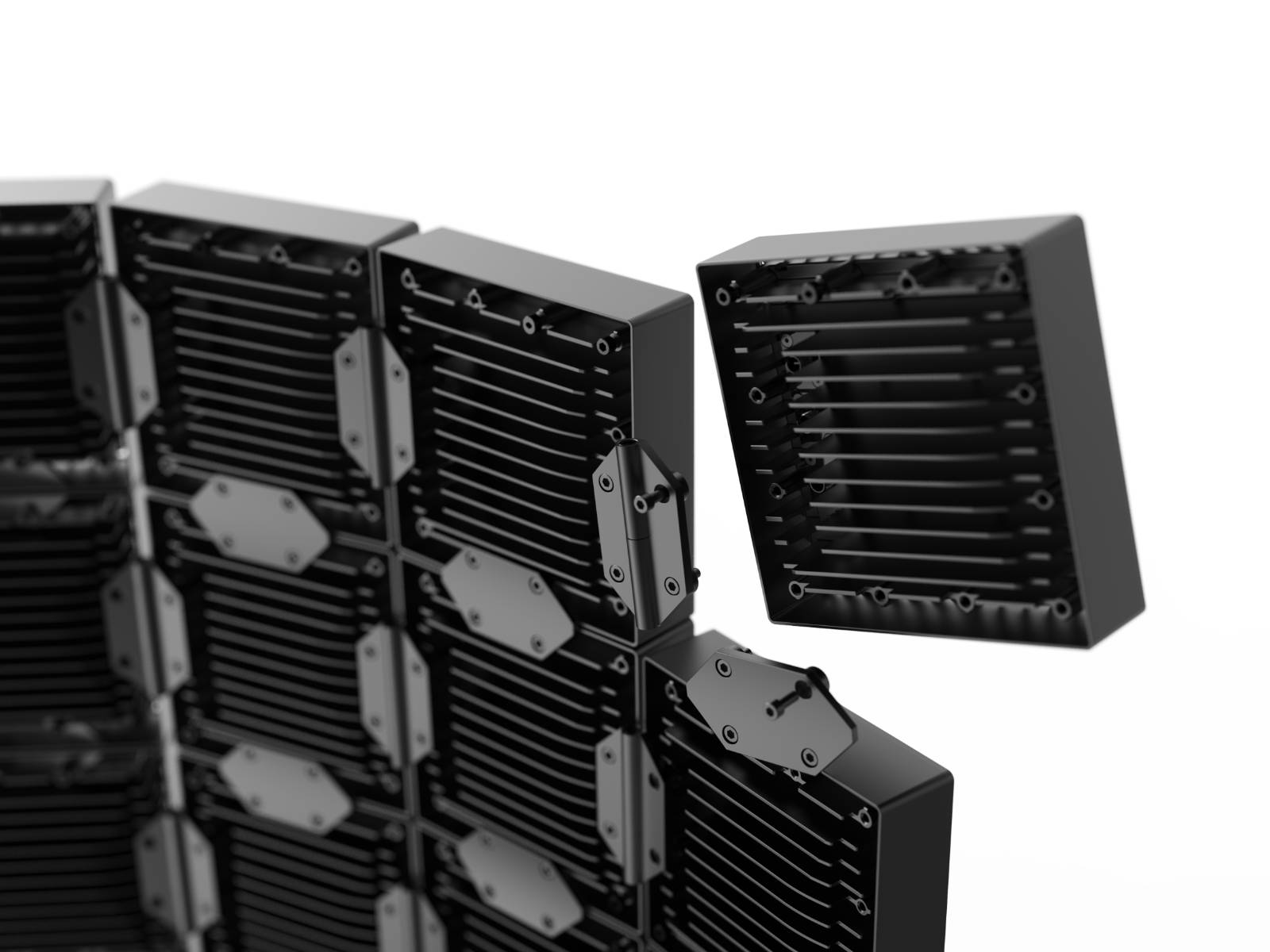

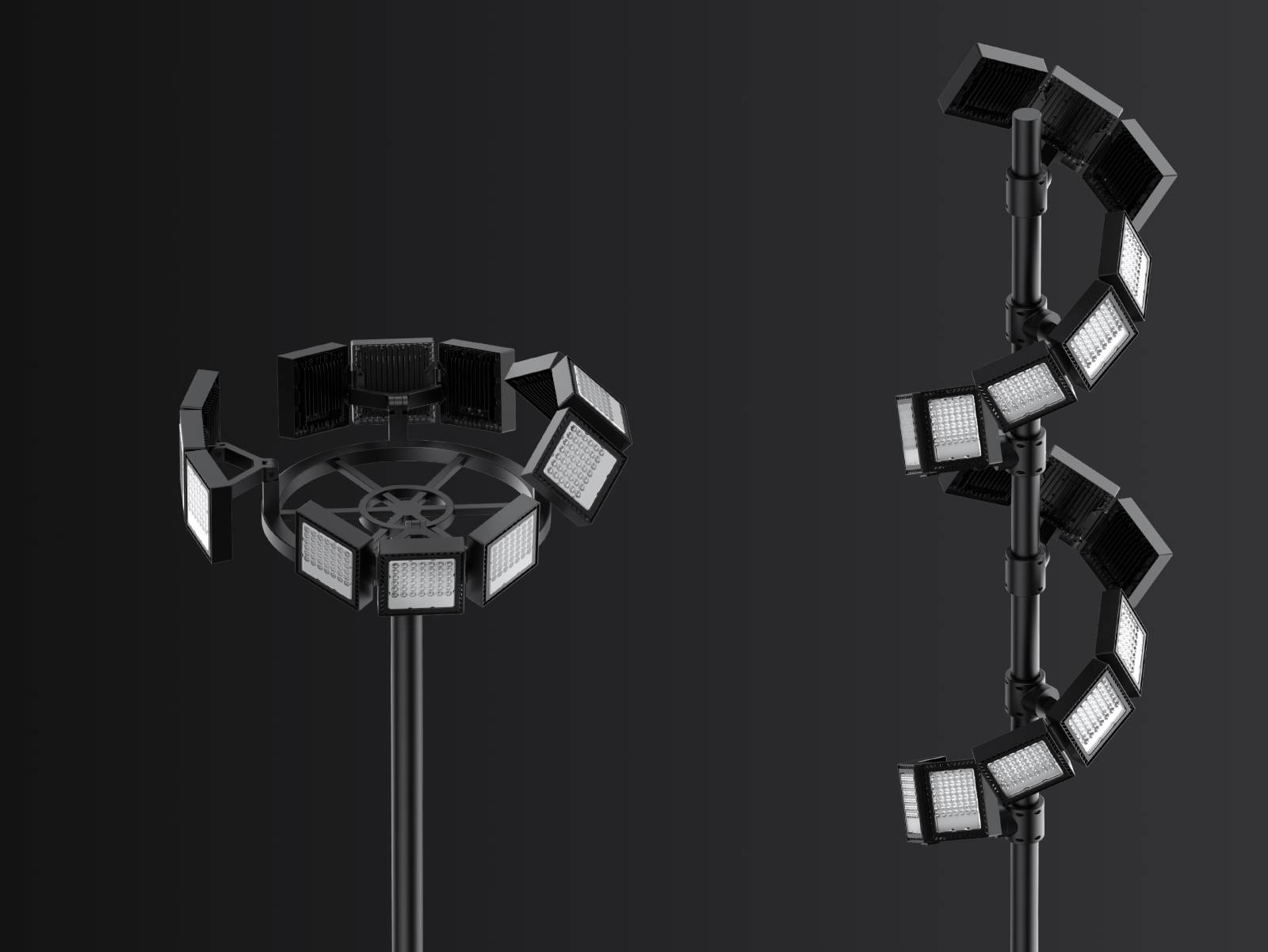

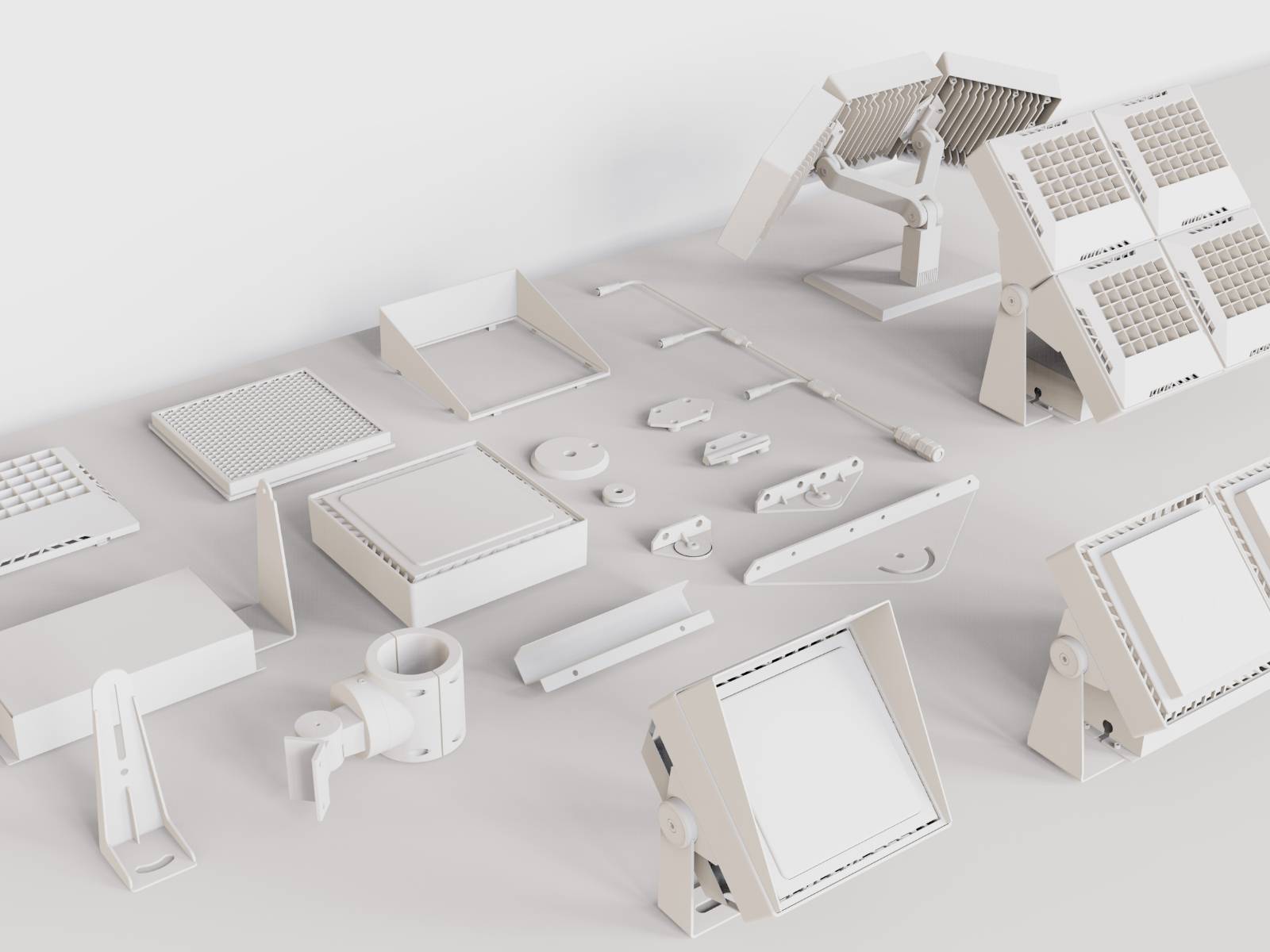

MatriX 6.0 adopts an innovative modular design, which solves the problems of traditional floodlights like unsightly appearance and low application rate in different scenarios. Newly developed professional lock accessories, which can be flexibly spliced and freely combined, and can also go on on-site light test as well as the secondary combination on site, making the selection is more diverse, more applicable to different scenes, and the overall environment is more unified. Meanwhile, it reduces the mold opening cost, improves the production efficiency and enterprise benefit, and enriches the unlimited possibilities of floodlights.

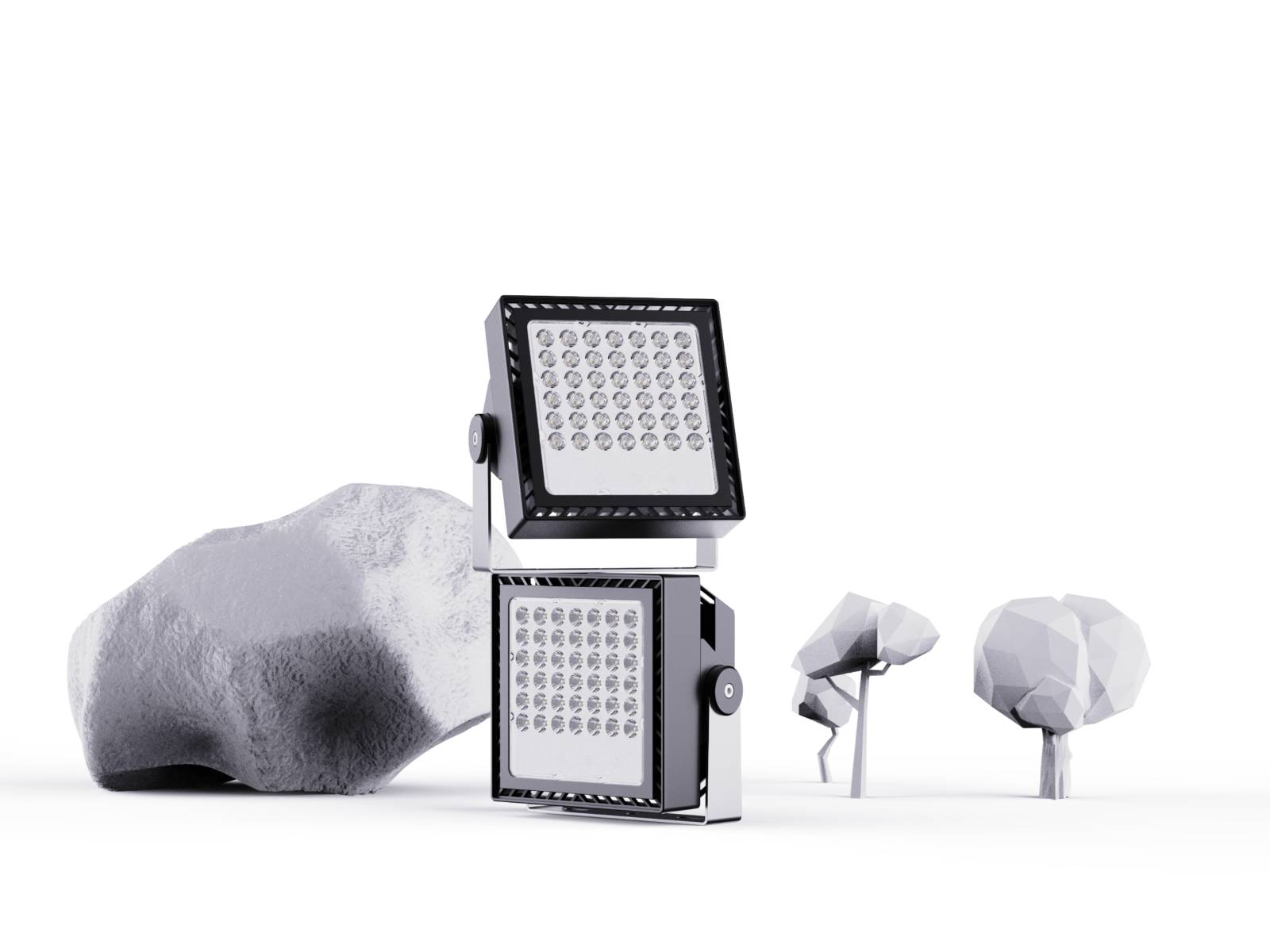

MatriX 6.0 can adapt to a variety of environments, even in extreme environments (-40℃—55℃), it can be used normally, which perfectly meets the lighting needs of ultra-high buildings and landscapes, such as the facades of buildings above 400 meters, and ultra-high lighting needs for landscapes, sculptures or large stadiums.

The specific design is carried out on the shape and light effect. The lens of the traditional floodlight is a secondary light distribution, the light effect loss is large, and the pertinence is not strong. The mini floodlight adopts an integrated one piece lens design-Japanese Teijin PC material ( It has the advantages of corrosion resistance, UV resistance, high light transmittance, high strength, etc.), combined with one-time light distribution technology, after 3000 hours of zero light decay test, to achieve the maximum utilization of light efficiency, and Lens can be selected according to different application scenarios .

project consists of 7 members, including 1 product manager, 3industrial design engineers, 2 structural engineers, and 1 marketing manager; During the design phase, the sales department raise market demands; During construction, the constructor put forward ideas for the convenience of construction and installation.

The ingenious design of the trapezoidal silicone ring makes it reach IP67, and is safer and more stable during use; the design of the dial's secondary locking structure and rotation feedback not only endows it a locking function, which can prevent the light from falling baceuse of loosening, but also allows the user to adjust angles more accurately; the lighting protection level is LV4, so it’s safe to use in rainy days; the electric and thermal separation design is used, which increases the stability of electrical performance and extends its service life; the back of each light is equipped with an external wire-retracting groove to route the wires, which eliminates the potential safety hazards caused by the exposure of wires.

The product takes one year from project approval to output, and the r&d investment is about RMB 1 million.

The modular design concept makes the rubik's cube projection lamp more flexible in use and combination, and the 10,000-watt lighting makes it more amazing.
