点光源UFO
UFO dot ligh
商业空间类 户外照明灯具 1646 0 2021-12-31
点赞(0) 收藏(0)
作品详情
中文 / English
作品简述

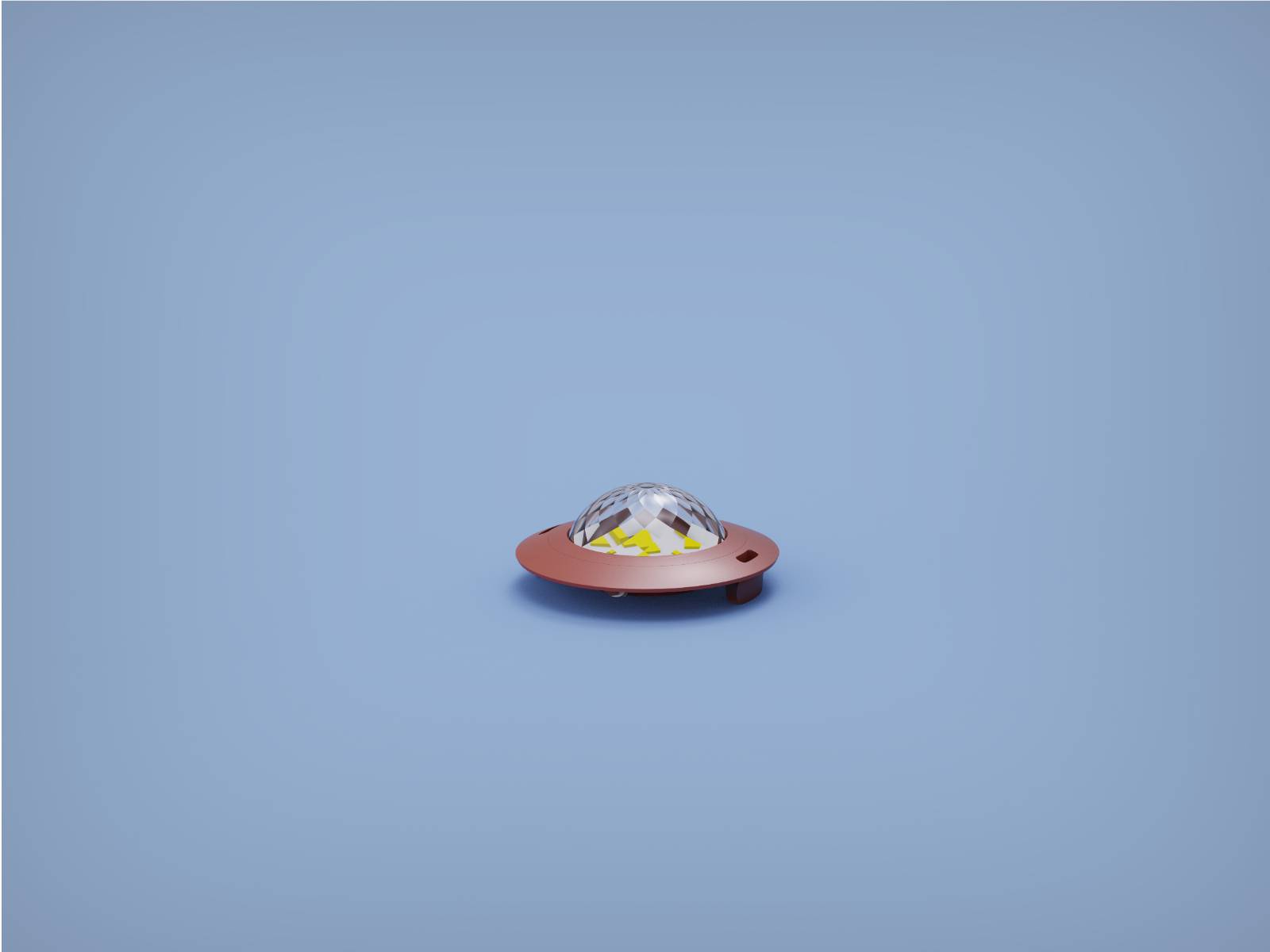

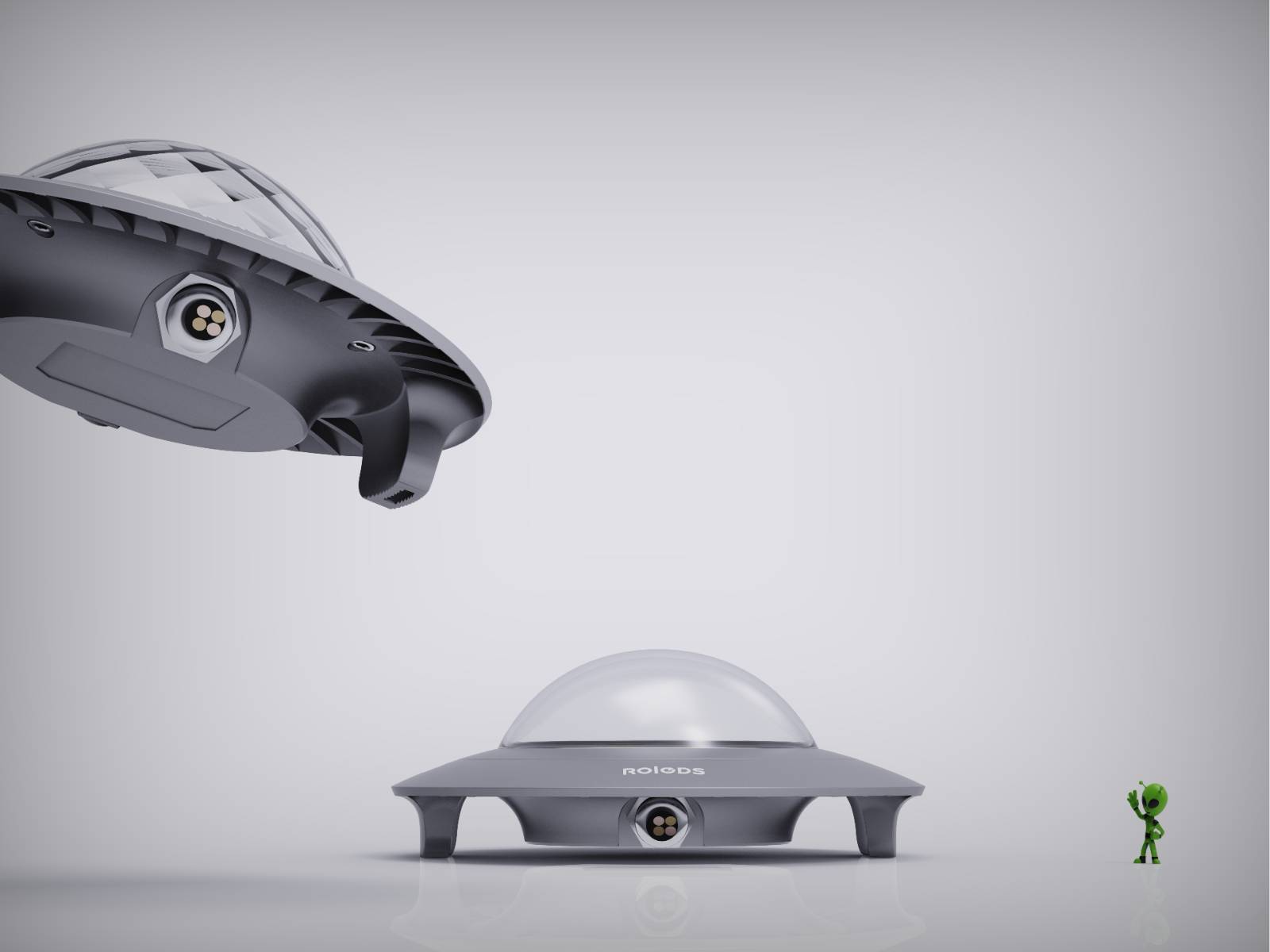

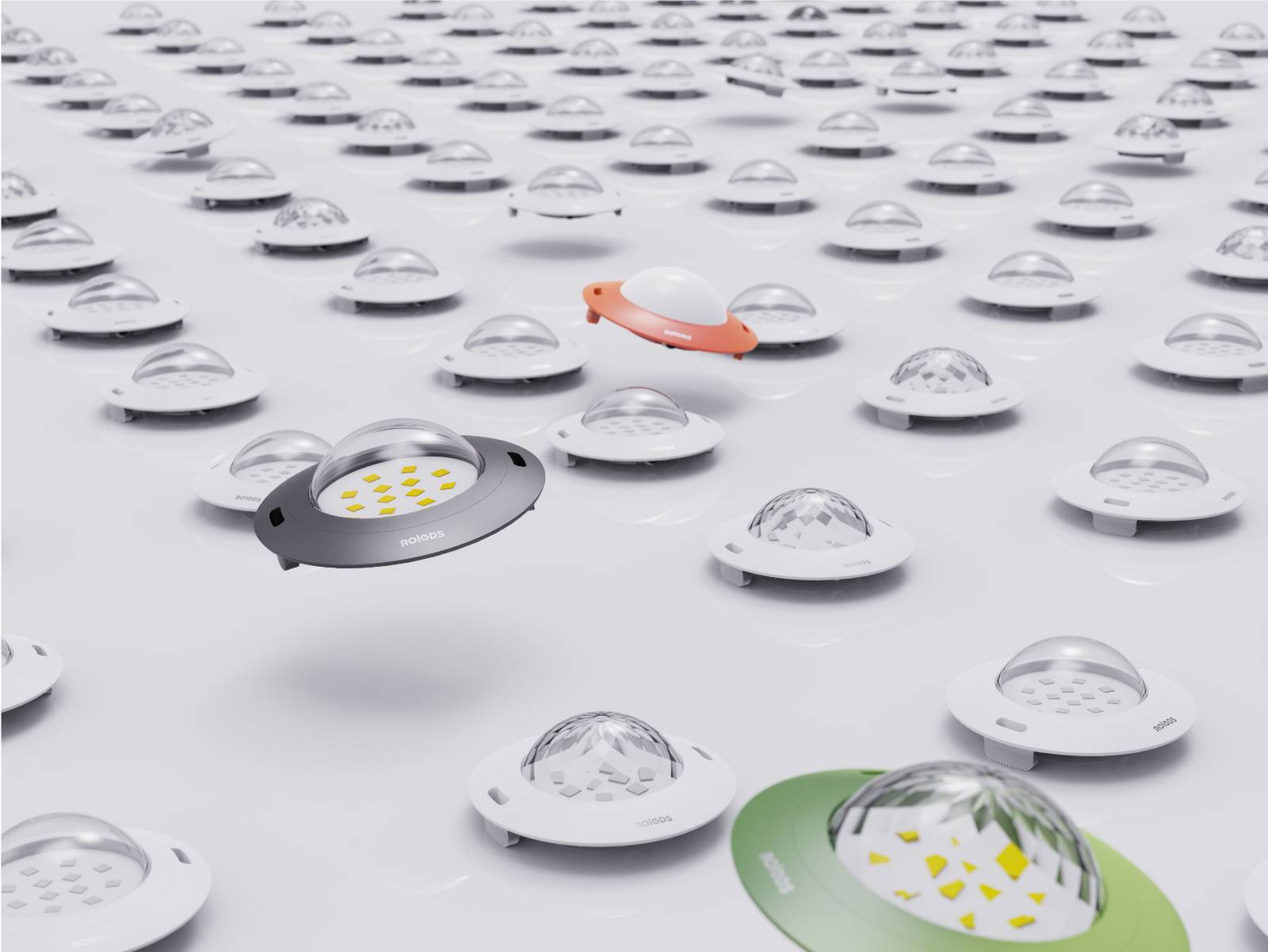

UFO点光源作为线形光源和泛光照明灯的补偿光源,是现有的一种最新型的装饰灯之一;UFO主要魅力在于通过设计和技术呈现出优雅的外观与实用性,以趣味性为出发点进行再设计,打破传统常规形态,整体曲线设计提取飞船-UFO的形态,不仅拥有功能性美学,也为产品提供独有的趣味与高辨识度;底部漩涡式散热筋,特有风冷循环设计,带来时尚科技的视觉体验。
用户价值
从美学到功能,为用户提供一个创新与实用性相结合的产品;外观进行创新型设计,将飞碟造型融入,应用灵巧,突破性外观带来更强的辨识度与趣味性;为景观的显示及明亮增添更多生活艺术美感。
商业表现
MatriX 6.0能适应多种环境,即使在极端环境中(-40℃—55℃),也能正常使用,完美满足了超高建筑和景观的照明需求,如 400 米以上建筑外立面、超高景观、雕塑或大型体育场馆的照明需求。
社会影响
LED点光源不但能够用于点阵显示屏,还能够用于城市亮化工程中房屋、桥梁等建筑物的轮廓勾勒,酒吧、宾馆、酒店等娱乐场所室内装饰灯光工程;灯体使用航空级铝合金材质,导热速率高,绿色环保可回收,具有防雷击ESD保护功能;灯故障仍受控;支持订制多灯串联满足项目需求。
团队组织
项目一共有6名,工业设计3名、结构设计2名;产品在设计初期经过大量头脑脑风暴设计,最终呈现点光源UFO。
流程方法
整体外观在初期设计方向定位为趣味、科技,外观在传统形态中有所突破,将安装形态巧妙与UFO结合,通过光学和结构共同努力,防眩光设计是灯具上必不可少的设计,所以光学设计师对此进行了反复设计与测试,即使相差不足一毫米都会产生完全不同的结果,在做了大量实验后最终选出最优的结果。
项目投入
该款产品从立项到产出花费半年时间,研发投入约40万人民币。
达成情况
出色的形态外观,结合出色的配光设计,产品最终结果是令人惊艳的。
Project Description
UFO dot light, as the compensatory light of linear light and floodlight, is one of the latest decorative lights. The main charm of UFO lies in the elegant appearance and practicality through design and technology, redesigning based on interest, breaking the traditional conventional form. The overall curve design extracts the form of the spacecraft-UFO, which not only has functional aesthetics, but also provides unique fun and high recognition for the product. The bottom vortex cooling ribs, unique cold wind cycle design brings a visual experience of fashion technology.
User Value
From aesthetics to functions, to provide users with a product that combines innovation and practicality; Innovative design of the appearance, incorporating the shape of the flying saucer. Flexible application and breakthrough appearance bring stronger recognition and interest; Added more beauty to the art of life for the display and brightness of the landscape.
Business Performance
MatriX 6.0 can adapt to a variety of environments, even in extreme environments (-40℃—55℃), it can be used normally, which perfectly meets the lighting needs of ultra-high buildings and landscapes, such as the facades of buildings above 400 meters, and ultra-high lighting needs for landscapes, sculptures or large stadiums.
Social Impact
LED dot light can be used not only for dot matrix displays, but also for outlines of buildings, bridges etc. in urban lighting projects and interior decoration lighting projects for bars, hotels, and other entertainment venues; The lamp body uses aviation-grade aluminum alloy material, high thermal conductivity, environmentally friendly and recyclable, with lightning protection ESD protection function; In case of lamp failure, can be still under control; Support for custom-made multiple lamps in series to meet project needs.
Team Structure
There are 6 members in total, including 3 members in industrial design and 2 members in structural design. After a lot of brain storm design in the initial stage of design, the product finally presents the point light source UFO.
Flow
Overall appearance on initial design direction positioning for fun, science and technology, a breakthrough in traditional form appearance, will be installed and UFO combined form, through the joint efforts of the optical and structural anti glare design is essential to the design on the lamps and lanterns, so optical designers to design and test, again and again, even if less than a millimeter apart will produce different results, After doing a lot of experiments, the optimal result is finally selected.
Project Investment
The product takes half a year from project approval to output, and the r&d investment is about 400,000 RMB.
Project Achievements
Excellent shape appearance, combined with excellent lighting design, the final result of the product is amazing.
