天津滨海图书馆
TIANJIN BINHAI LIBRARY
提名参赛 空间 艺术文化 5734 0 2017-07-25
点赞(1) 收藏(1)
作品详情
中文 / English
作品简述

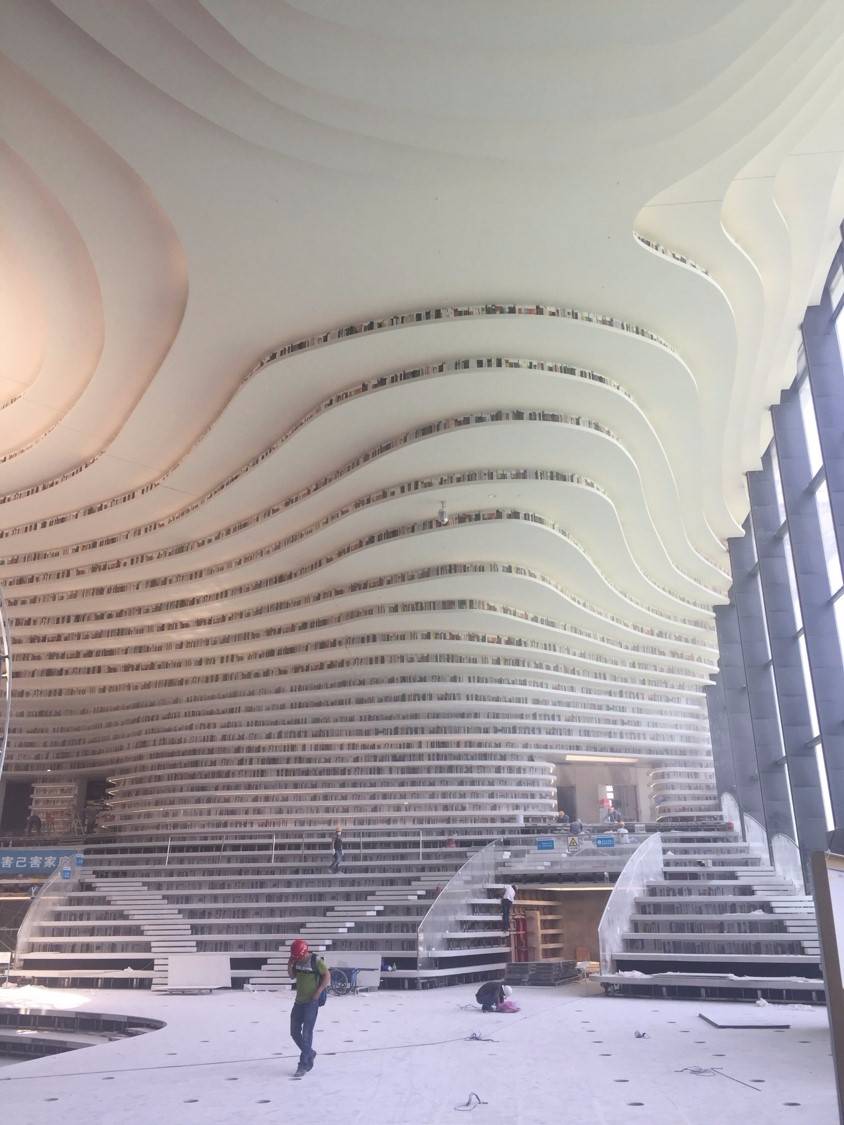

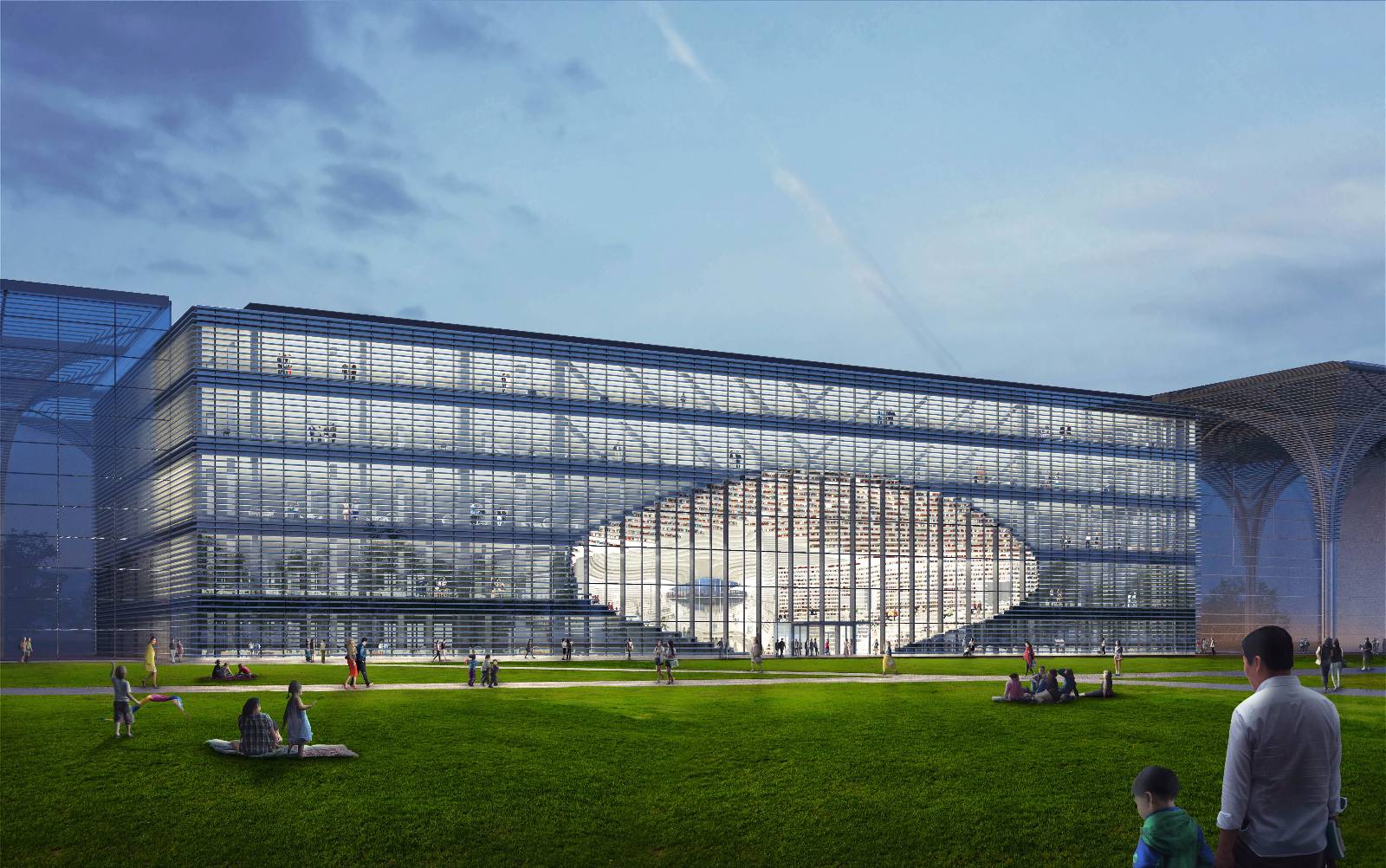

MVRDV在中国天津建造的图书馆已经接近完工。这个34,200平方米的建筑是新滨海文化中心的一部分,项目总规划由德国建筑公司GMP设计,一条“文化走廊”把它与其他四栋楼相连。图书馆围绕着一个镜面球形报告厅展开,报告厅与中央天井一起,构成了一只“眼”,可以直观室内空间全景,并反射出楼前公园的美景。阶田式的书架贯穿中央天井,与球体呼应;它将使用者一路带入图书馆中心,然后围绕建筑物形成外墙的遮光栅格。这个文化项目为天津市滨海区设计,预计将在2017年中下旬对外开放。
用户价值
“‘眼” 是图书馆的中心。它将建筑‘掏空’,在形成书架的同时,还创造了休息、阅读、会友、攀爬的空间;它容易被人接近,是有机的社会性空间,它的中心是映射着周边环境的报告厅,可以直观内部360度全景;是一个真正的让人反思、沉思的场所。 五层的建筑包括了广泛的教育项目设施。地下层拥有服务空间、书籍储存空间和一个巨大的存档室。地面层有方便儿童和老人的阅读区域、主入口和通向文化综合体的入口、报告厅和去向高层的阶梯。第一层和第二层包括了阅读室、书籍和休息区。最上面两层包括了会议室、办公室、计算机房和听音室。
社会影响
作为建立天津市文化区域这一整体规划的一部分,这个建筑在承担教育中心功能的同时,也将成为公园与文化中心的连接体。通过设计,这个综合体将变成中心商务区、老城区、住宅区、商业区和政府机构的交汇点;希望对各个区域内目前缺乏的功能起到补充作用。
团队组织
设计团队: Winy Maas, Jacob van Rijs, Nathalie de Vries with Wenchian Shi, María López Calleja, Chi Li, Ángel Sánchez Navarro, Daehee Suk, Guang Ruey Tan, Xichen Sun, Michael Zhang, Kyosuk Lee, Mariya Gyaurova, Jaime Dominguez Bálgoma, Antonio Luca Coco, Costanza Cuccato, Matteo Artico and Tomaso Maschietti. 概念设计: Winy Maas, Jacob van Rijs, Nathalie de Vries with Renske van der Stoep, Martine Vledder, Kyosuk Lee, Gerard Heerink, Chi Li, Francisco Pomares, Nicolas Lee, Claudia Bode, Sharon Sin, Jaap Baselmans, Herman Gaarman, Hui Hsin Liao, Antonio Luca Coco, Costanza Cuccato, Matteo Artico and Tomaso Maschietti. 合作建筑师:中国天津市城市规划设计研究院建筑分院(TUPDI)
流程方法

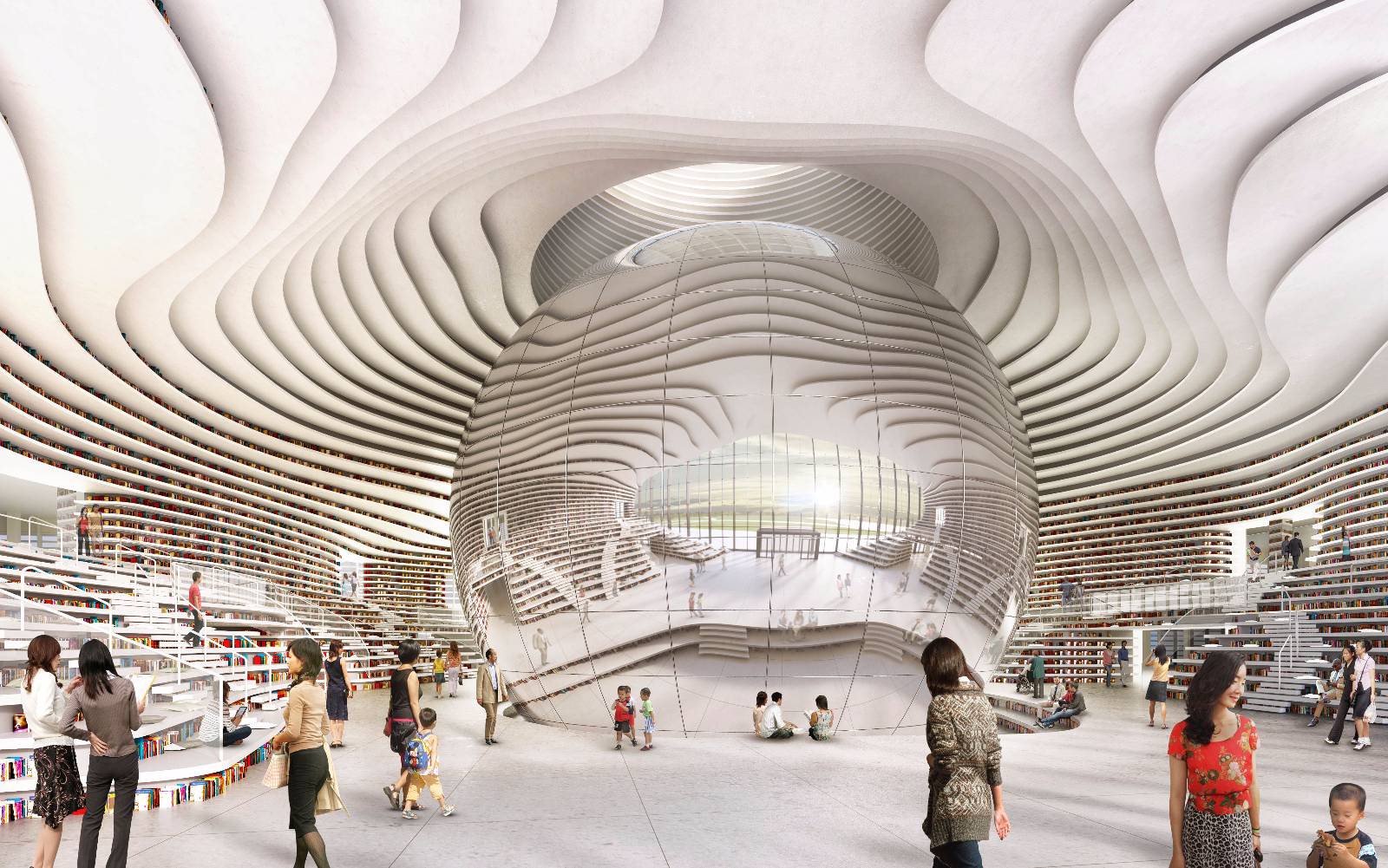

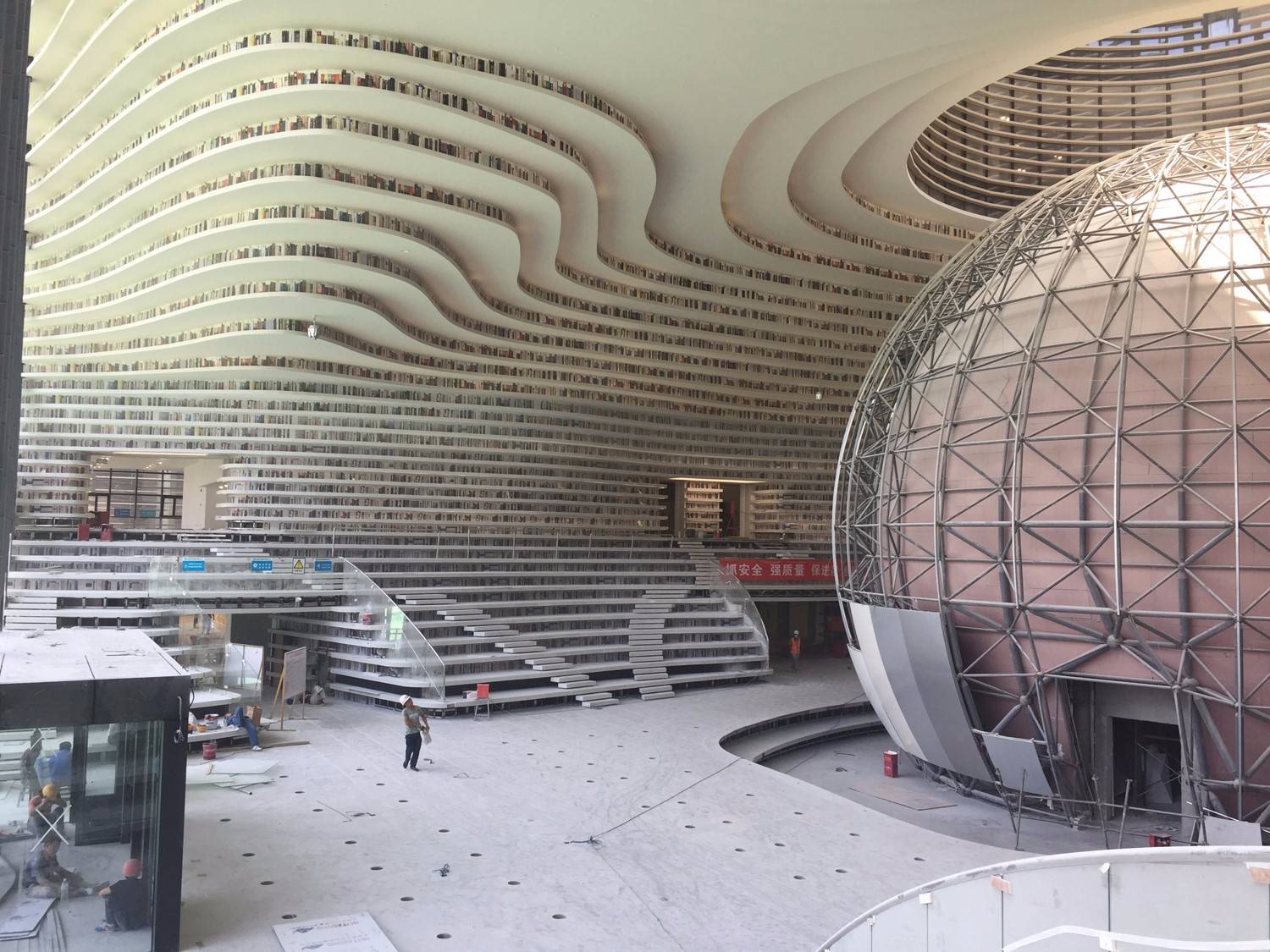

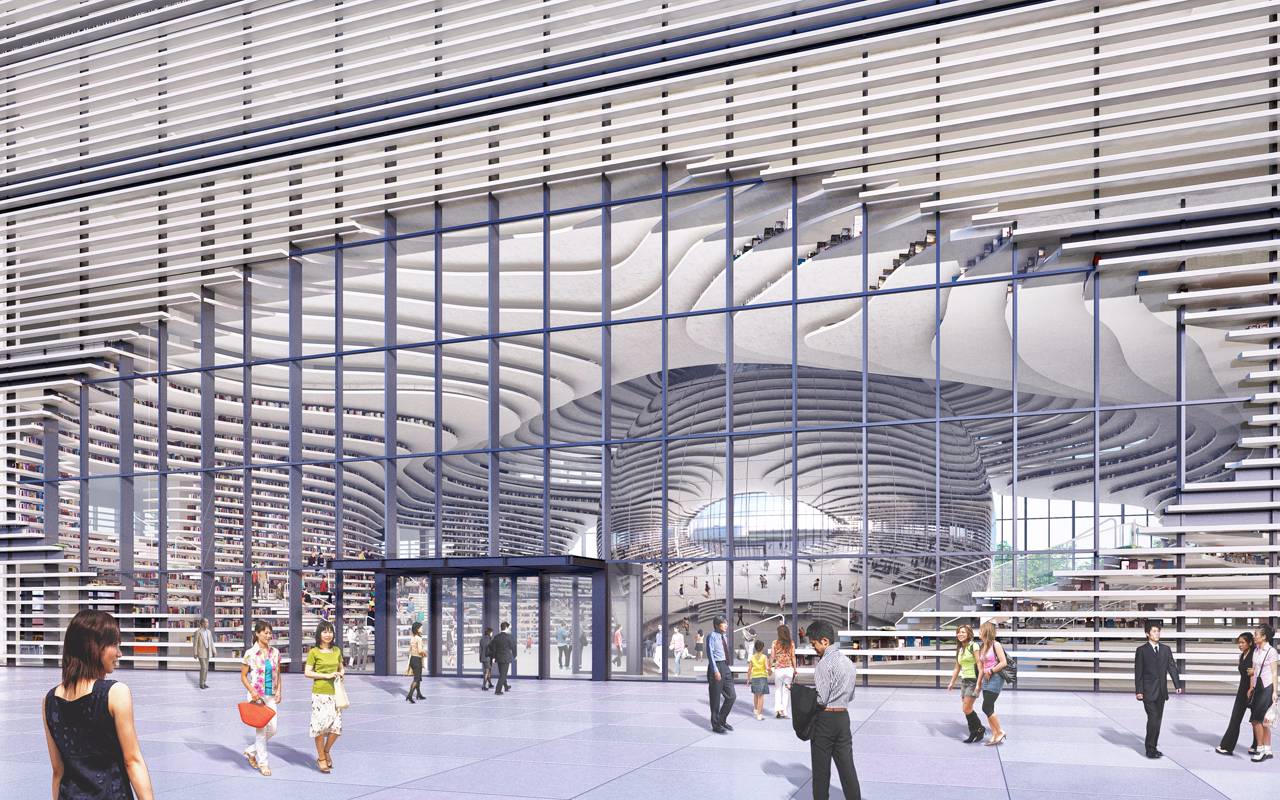

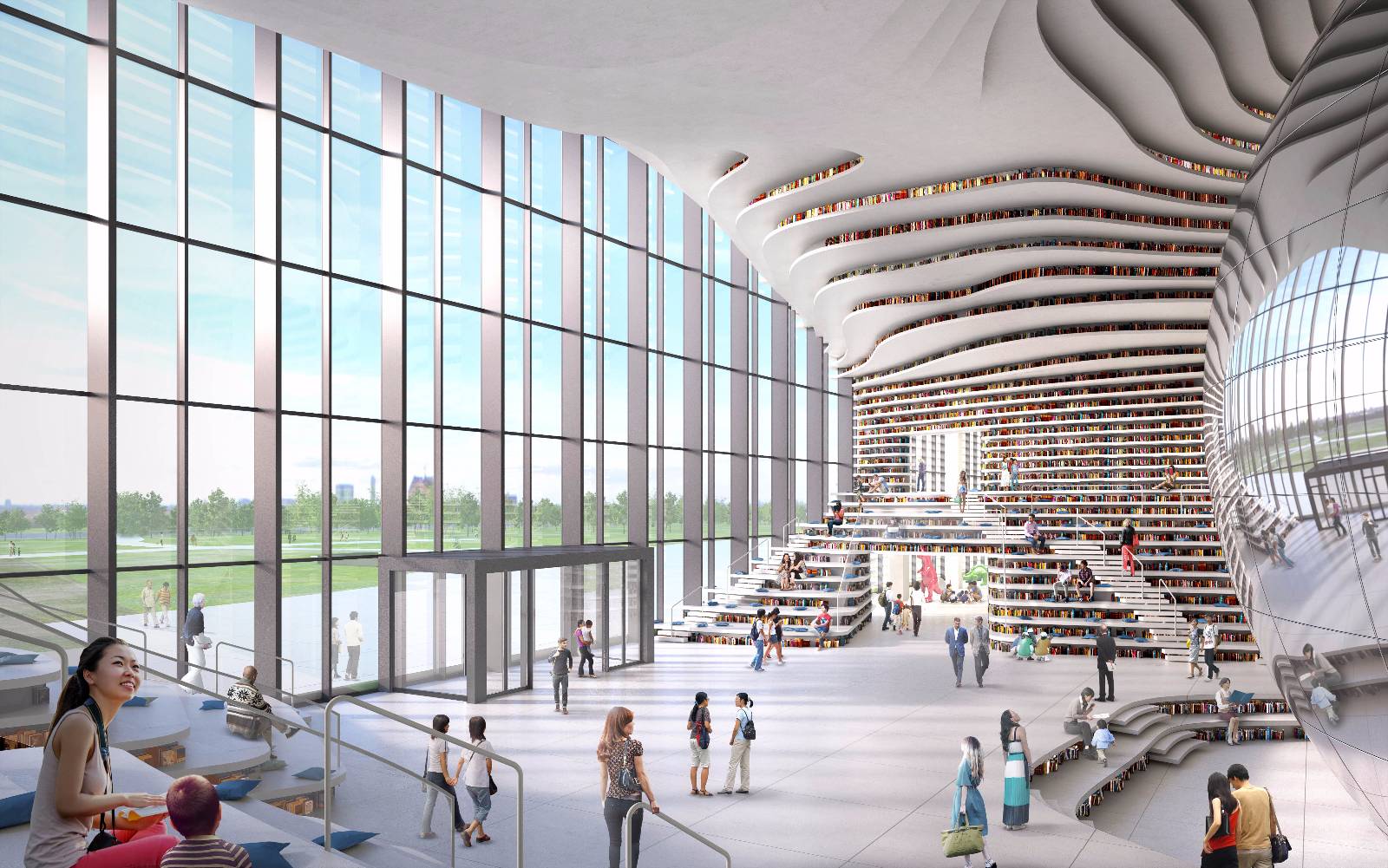

一个椭圆形的开口直穿建筑中部,由“眼”撑开;“眼”是一个球形镜面报告厅,它矗立于中央天井内,扩大空间的视觉效果。阶田式书架呼应球体,形成了一个内部地形景观;它的轮廓向外延伸,包围建筑外部。这样一来,内部的阶梯书架在外部也被表现出来,每一层还同时起到遮光栅格的作用
Project Description
MVRDV are nearing the completion of a library in Tianjin, China. The 34,200 m2 building forms part of the new Binhai Cultural Centre, the masterplan of which was designed by German architects GMP, and joins four other buildings through a series of ‘cultural corridors’. The library bases itself around a mirrored spherical auditorium which, coupled with the main atrium, forms an eye that gives panoramas of the interior space and reflects the beautiful park in front of the building. Terraced bookshelves echo the sphere throughout the atrium, leading users up into the heart of the library, before continuing around the building as louvres. The cultural project was designed for Tianjin Binhai District and is estimated to be open to the public in mid-2017.
User Value

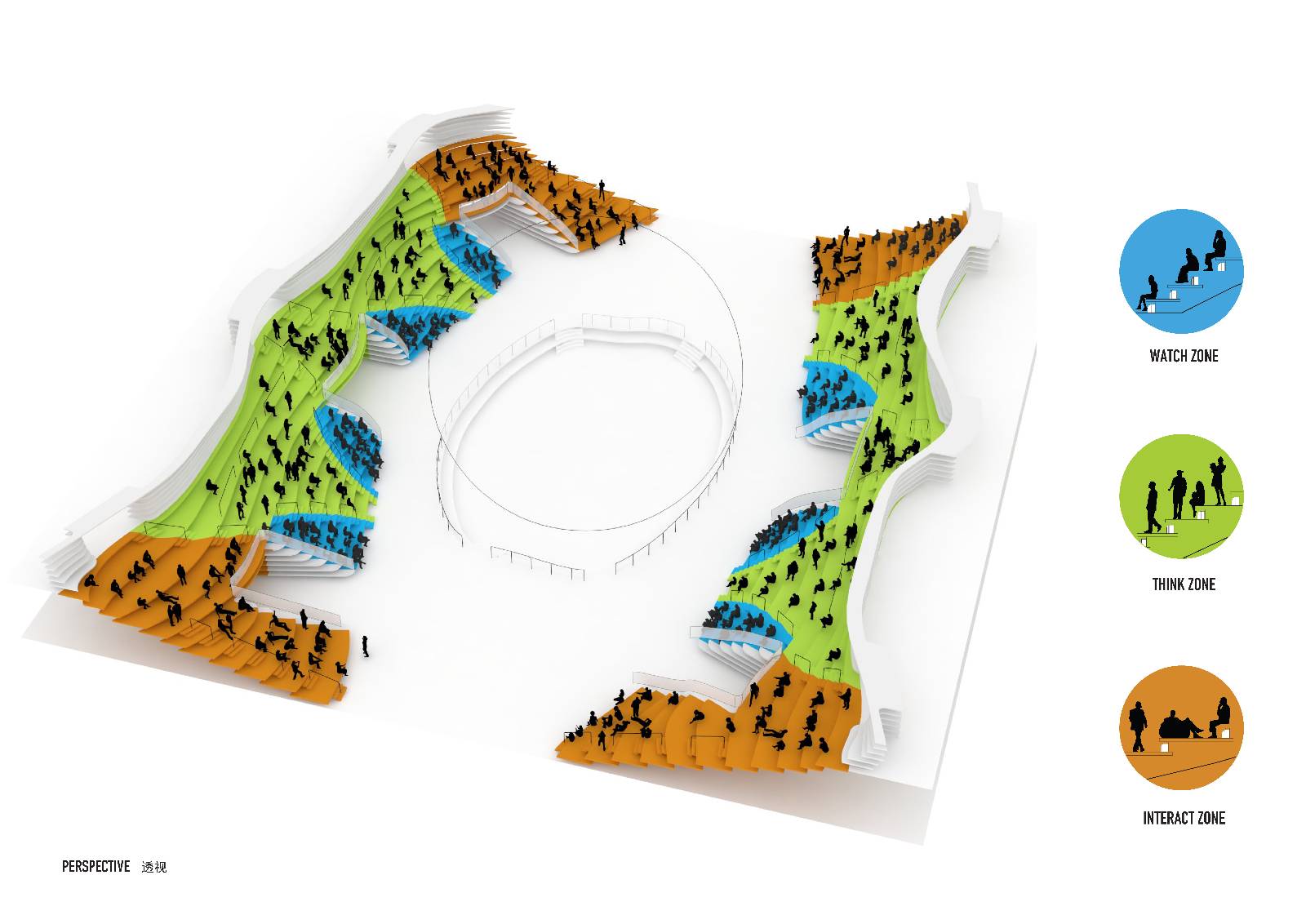

The Eye is the centre of the library. It ‘hollows out’ the building and creates, out of bookshelves, an environment to sit, to read, to hang out, to climb and to access, to create an organic social space, in its heart is the auditorium which mirrors the environment, giving a 360 degree panorama of the space inside; a truly reflective and pensive environment. The five levels of the building contain an extensive programme of educational facilities. The subterranean level has in it service spaces, book storage and a large archive, whilst above this on the ground floor are easy access reading areas for children and the elderly, the main entrance and access to the cultural complex, the auditorium and terraced access to the floors above. The first and second floors consist primarily of reading rooms, books and lounge areas whilst the top two floors also include meeting rooms, offices, computer rooms and audio rooms.
Social Impact
Tianjin Library is part of German architects GMP’s 120,000m2 masterplan which aims to accentuate the characteristics of the surrounding districts. The building acts not only as an education centre but as a connector from the park into the cultural district. Through its design the complex will become a junction point for the CBD, old town, residential districts, commercial areas and the government quarter; hoping to compensate for any missing programme in each.
Team Structure
Design Team: Winy Maas, Jacob van Rijs, Nathalie de Vries with Wenchian Shi, María López Calleja, Chi Li, Ángel Sánchez Navarro, Daehee Suk, Guang Ruey Tan, Xichen Sun, Michael Zhang, Kyosuk Lee, Mariya Gyaurova, Jaime Dominguez Bálgoma, Antonio Luca Coco, Costanza Cuccato, Matteo Artico and Tomaso Maschietti. Concept Design: Winy Maas, Jacob van Rijs, Nathalie de Vries with Renske van der Stoep, Martine Vledder, Kyosuk Lee, Gerard Heerink, Chi Li, Francisco Pomares, Nicolas Lee, Claudia Bode, Sharon Sin, Jaap Baselmans, Herman Gaarman, Hui Hsin Liao, Antonio Luca Coco, Costanza Cuccato, Matteo Artico and Tomaso Maschietti. Partners: Co-Architect: Tianjin Urban Planning and Design Institute (TUPDI), Tianjin, China
Flow
The futuristic library sits within a sheltered gallery, topped with cathedral-like vaulted arches, which winds its way throughout the scheme. The library’s outer volume was given in the masterplan so the Eye and its surrounding semi-public area is an internal space, like an inverted icon, acting as a central point and folly in the building.
Project Investment
2-3 years
Project Achievements
The cultural project was designed for Tianjin Binhai District and is estimated to be open to the public in mid-2017.
