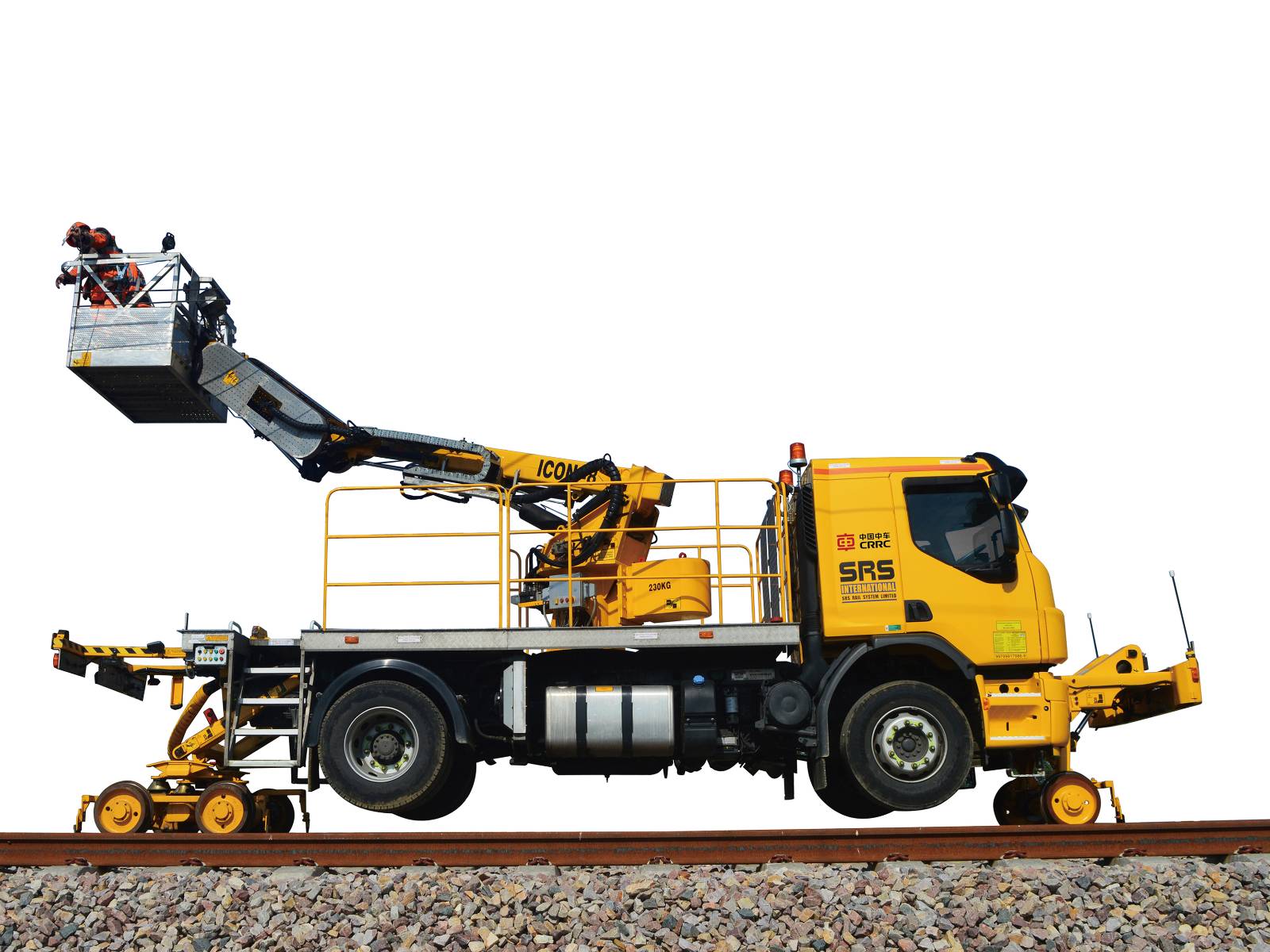

The dual-use high-altitude working vehicle of ICON series that developed by the CRRC SIFANG CO., LTD., is the basic models of road-railer for engineering series. It mainly used for the construction, overhaul and maintenance operations of the track catenary, as well as lights installation on the railway or highway, tunnel cleaning and other high-altitude operations. A total of 33 patent applications, including 4 patents (authorized); 29 new and practical patents (authorized 24, accepted 5). We also set 3 items of enterprise standards.

Design highlights： 1. The dual-use high-altitude working vehicle of ICON series is the first model in China, which has passed the European CE certification. 2. The vehicle is divided into five systems （1） Road driving system: monitoring the vehicle driving on the road, while offers power and installation carrier for other systems. （2） Railway driving system: safeguarding safe traffic on railways and the conversion of highways and railways. The front part adopts swing arm structure without power output, playing a guiding role. The rear part uses connecting rod frame structure, and the power is outputted to guide pulley by the hydraulic motor through gearbox so that to provide power to the railway. （3） Aerial work system: the engineering part is a mixed structure with telescopic arm and folding arm, using the electronic proportional control and the installation of balance valve and hydraulic lock to ensure the smoothness and security of the operation. In addition, there is an interlock function between the operating platform and the cab. Equipped with emergency devices making it sure that workers return to the ground safely in case of the vehicle lost power. （4） Electric devices control system: use DC24V battery to supply power. （5） Hydraulic control system: use closed circuit to control the railway, consisting of variable pump (main pump) and variable motor; and open circuit to control orientation, lock of the front-and-rear axle, aerial work and also the emergency function. 3. Vivid visual effects The vehicle line combining hardness with softness. The driver room, the upper part and the guide mechanism all use the signal- yellow, while the chassis uses black ink, pursuing color harmony, simple and generous.

1. Improve company's reputation Since the dual-use high-altitude working vehicle of ICON series being applied in the United Kingdom, it marks that the CRRC SIFANG CO., LTD. Of century-old development history entered the European market. It is the fruitful achievement that we made, an important milestone of innovation breakthrough, and more importantly a new starting point for the rapid development of our company. 2. Improve the design level Through the successful implementation of this project, we have mastered the design method of dual-use high-altitude working vehicle drove by steel wheel. On this basis, we designed and developed the dual-use hoisting operating vehicle and catenary wire-barrow, high-altitude working vehicle of heavy-duty truck chassis, and other products. 3. Improve the manufacturing technique Through the successful implementation of this project, we improved our manufacturing technique. The static hydraulic driven running gear, the high-altitude operations (especially the automatic leveling structure requires the overall processing and re-assembly, processing accuracy of 0.01mm), and the chassis transformation are all produced and processed independently. It is the installation of static hydraulic system and CAN-BUS electrical system that improved the assembling level.

First designer: Wang Zhaohui Co-designer: Chen Changjiang, Jiang Tao, Li Haitao, Liu Zheng, Zhao Yongli In charge of industrial design, overall planning, architectonics and project management severally.

During the process of design and development, innovation has been made to achieve the desired goal in terms of preliminary planning, mission assignment, project establishment, design planning, program design, technical design, construction design, product trial and validation and confirmation.

ICON-8 dual-use high-altitude working vehicle is one of the modern and high-tech products of high additional value that CRRC SIFANG CO., LTD. developed for the British market. We adopted European design standards and made unprecedented breakthroughs in railway line, highway and railway transformation, front-and-rear lock system, and electrical and hydraulic control domestically. The dual-use high-altitude working vehicle has solved the technical problems such as the use of highway and railway mode, the vertical road and the steel wheel drive, which saves resource, reduces energy consumption, and improves the production efficiency and the product versatility. The success of ICON-8 dual-use high-altitude working vehicle build a platform of dual-use utility engineering vehicle, applied to different operating devices, and met the needs of the market. The ICON-8 aerial vehicles of heavy-duty chassis passed verification of the Ministry of Industry and the 3C certification of China Quality Certification Center, obtaining highway license. The ICON-10 dual-use high-altitude working vehicles completed the British CE certification in December 12, 2015. ICON series of dual-use high-altitude working vehicles have been unveiled at home and abroad, winning higher market reputation and being praised as the "railway doctor" domestically.
