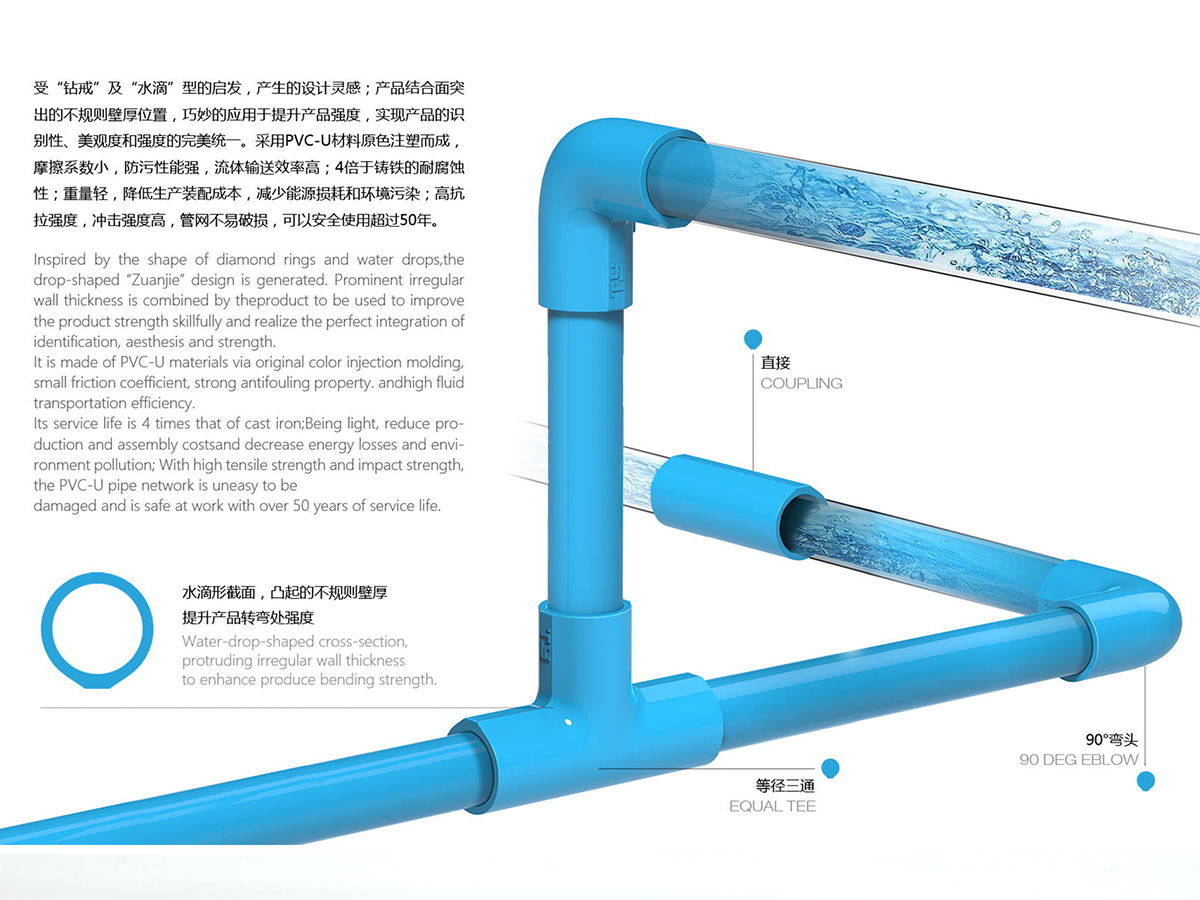

Tianyan “Zuanjie” meets the challenge of reaching a new level of pipeline product strength. Inspired by the shape of diamond rings and water drops, the drop-shaped “Zuanjie” design is generated. Prominent irregular wall thickness is combined by the product to be used to improve the product strength skillfully and realize the perfect integration of identification, aesthesis and strength.

Applications: building water-supply pipelines, pipeline systems in water treatment plants, aquaculture pipelines, irrigation pipelines, industrial water transportation, etc.As a kind of water supply and drainage pipeline with mature technologies, PVC-U pipeline system has been extensively used at home and abroad.Raw materials and finished products of Tianyan PVC-U water supply network are both in line with or exceed relevant standards, so Tianyan PVC-U network can be applied to drinking water devices; 20℃ to 50℃ continuous water supply can be available by the network design. In this case, the service life of the network can be 50 years; The price of PVC-U network is lower than cast iron, so use costs can be reduced; Tianyan PVC-U pipeline system is equipped with full-size pipe fittings can is applicable to various water transportation requirements.

In less than three months after introduction, the number of orders has reached around 30,000, so it is believed a wider market is ahead. It is estimated the single item accounts for 70% market share in the PVC-U water supply series market, and that the sales volume of 2017 can reach 500,000. Thus, 50 million yuan output value can be created for the enterprise.

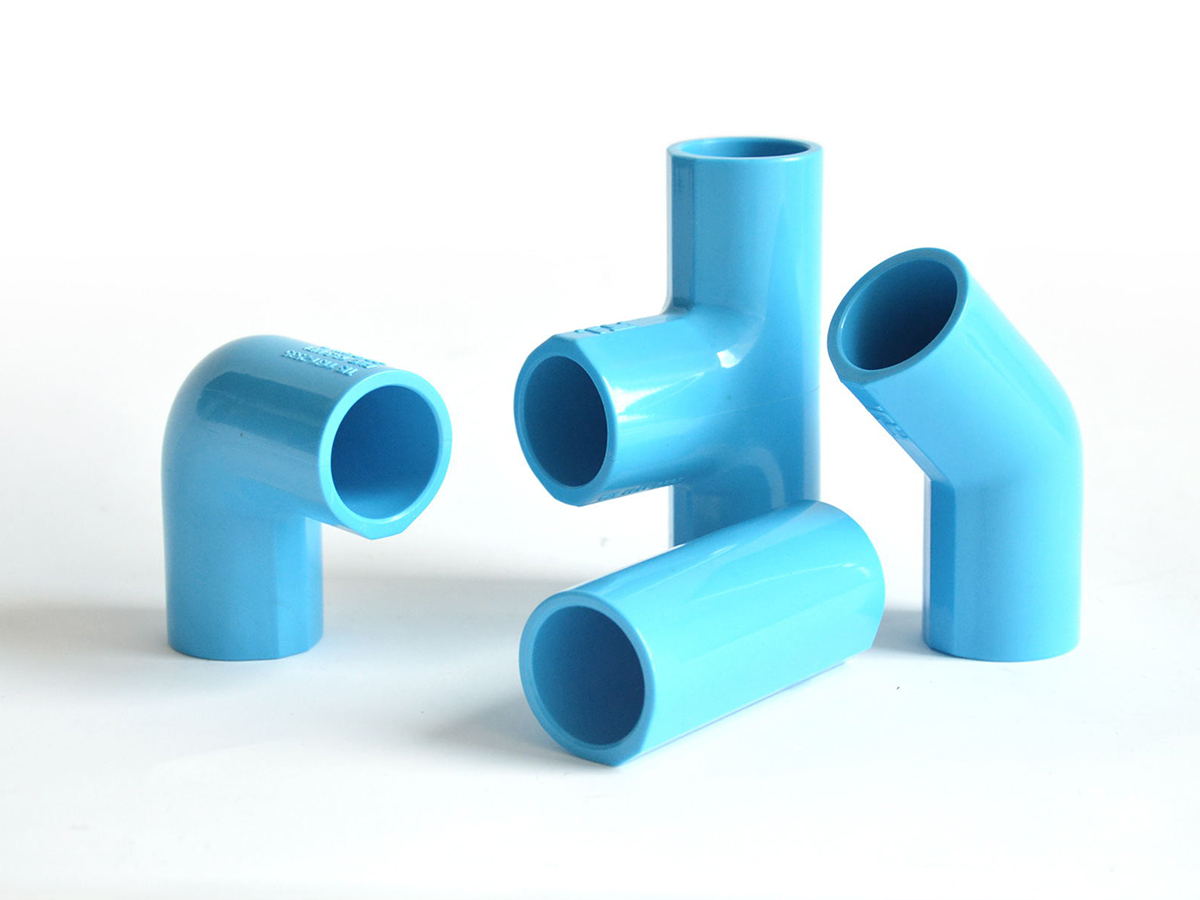

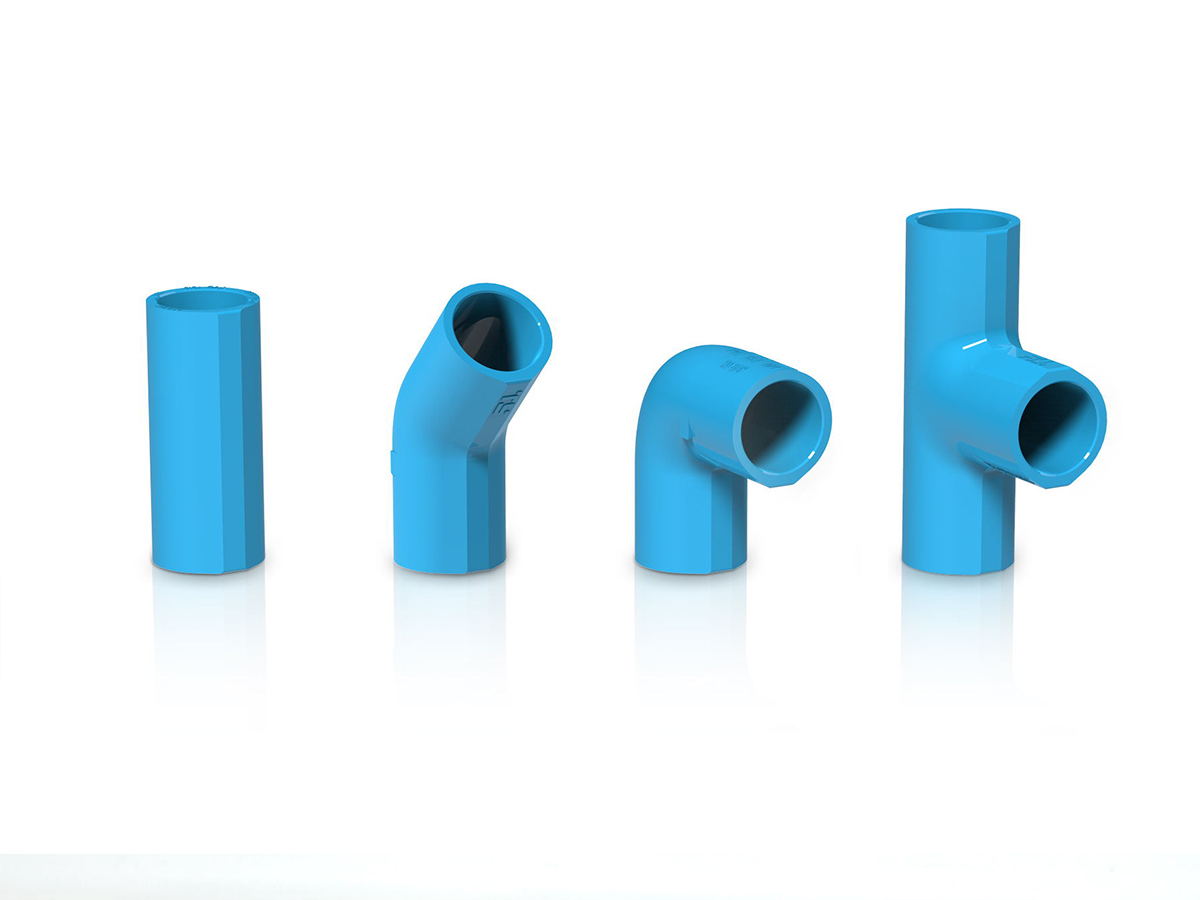

It is made of PVC-U materials via original color injection molding with smooth inner and outer walls, small friction coefficient, and strong antifouling property. The fluid transportation efficiency is 25% higher than the cast iron pipe network; For most acids and alkalis, it is with strong resistibility. Via non-corroding and preservative treatment, its service life is 4 times that of cast iron; Being light, PVC-U has only 1/5 to 1/6 density of cast iron, so as to reduce production and assembly costs and decrease energy losses and environment pollution; With high tensile strength and impact strength, the PVC-U pipe network is uneasy to be damaged and is safe at work with over 50 years of service life;

The design team of the company is composed of the experts and engineers with rich experience in various fields, which cover the relevant fields like appearance design, research and development of structure, and electronic technique and so on. The range of services covers multiple industries including household appliances, medical treatment and tools and so on. It serves for more than one hundred of medium and small-sized enterprises. It adheres to the “innovation-oriented” design philosophy. In the meanwhile, it also creates many classic cases, including SUPOR ball kettle electric cooker, electric baking pan, a series of medical products in China Aviation Industry, and many hidden champions in tools industry.

The most common verification method used in this project is detection and verification. Through the change of modeling, it is necessary to ensure that it has certain compressibility in the process of use.

Design and development 6 months, patent application 3 months

In less than three months after introduction, the number of orders has reached around 30,000, so it is believed a wider market is ahead.
